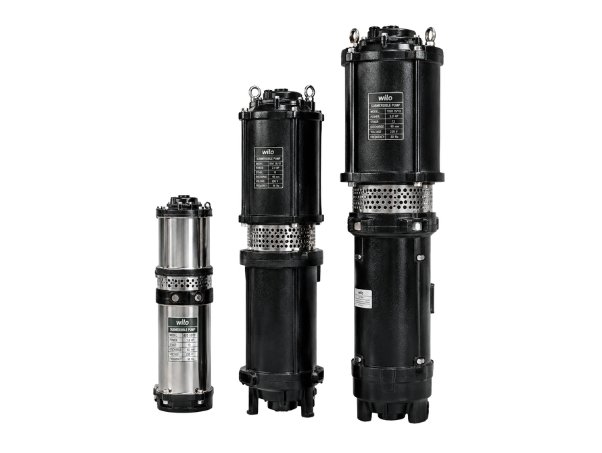

WPO Raptor – Vertical Open Well Submersible Pump Set (3 Phase)

WPO Raptor – Vertical Open Well Submersible Pump Set (3 Phase)

₹100.00

Heavy-duty vertical open well submersible pump set (3 Phase) designed for high head (up to 148 m) and high discharge (up to 1500 LPM) applications in agriculture and bulk water supply systems.
Add to wishlistAdd to compare
ENQUIRY!
Category: Brand:

Description

The Wilo WPO Raptor Vertical Open Well Submersible Pump Set is a high-performance, multi-stage pumping system designed for large-scale water transfer, agriculture, and industrial applications.

It is engineered for deep open well installations, delivering very high head (up to 148 m) and high discharge capacity (up to 1500 LPM). The pump is built with a heavy-duty cast iron construction and CED coating, ensuring durability in demanding continuous-duty applications.

Additional information

brand

Impala

Features

  • Vertical open well submersible pump set (multi-stage)
  • Very high head capability up to 148 meters
  • High discharge capacity up to 1500 LPM
  • Power range up to 16.8 kW (22.5 HP)
  • Multi-stage design (up to 8 stages depending on model)
  • Cast iron impeller, casing, and motor body for rugged durability
  • CED coating for corrosion protection
  • Dynamically balanced rotating components (low vibration & noise)
  • No suction or priming issues (submerged operation)
  • High efficiency motor for reduced energy consumption
  • Suitable for continuous heavy-duty operation

Technical Specification

  • Type: Vertical Open Well Submersible Pump Set
  • Phase: Three Phase
  • Voltage: 350–440 V
  • Flow Rate: Up to 1500 LPM
  • Head Range: Up to 148 m
  • Power Rating: Up to 16.8 kW (22.5 HP)
  • Stages: 2 to 8 (model dependent)
  • Pipe Size: 50 mm / 65 mm / 75 mm (variant based)
  • Materials of Construction:
    • Impeller: Cast Iron
    • Casing: Cast Iron
    • Motor Body: Cast Iron
  • Coating: CED anti-corrosion coating
  • Starting Method: DOL / Star-Delta (model dependent)

Applications

  • Large-scale agricultural irrigation
  • Open well water lifting
  • Farmhouses and agricultural estates
  • Apartment and housing society water supply
  • Industrial water transfer systems
  • High head water distribution networks
  • Continuous bulk water pumping systems

Key Advantage

The WPO Raptor Vertical Series is best suited when:

  • Very high head is required (up to 148 m)
  • Water must be lifted from deep open wells
  • Large irrigation or industrial flow is needed
  • Reliable continuous-duty pumping is required
