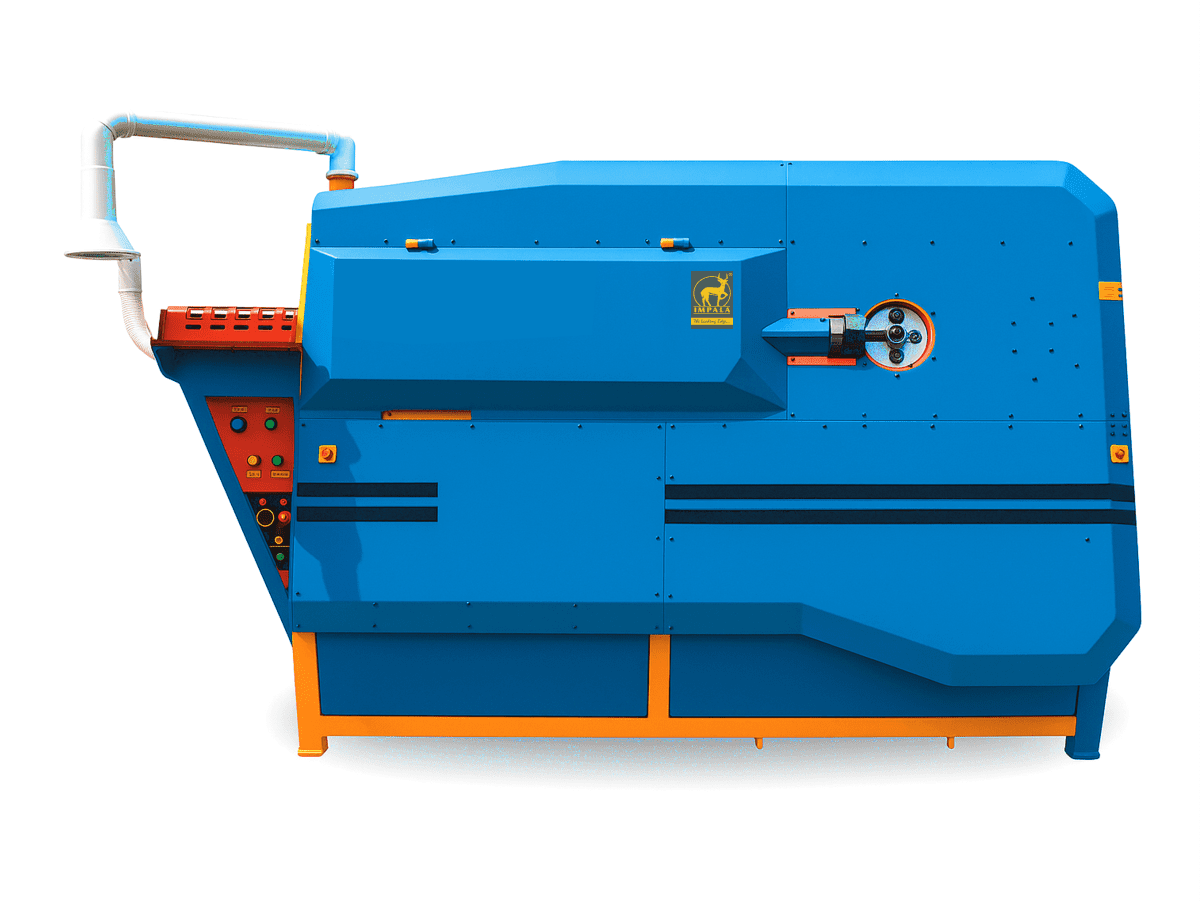

The IM Automatic Stirrup Bending Machine with PLC wire feeding system delivers high-speed, high-precision bending for single and double wire applications. With advanced control, double-direction bending, and high productivity output, it is ideal for large-scale construction and rebar processing operations.
| Model | IM Automatic Wire Feeding System(PLC) |
|---|---|
| Single Wire Bending (MM) | 5-14 Round Bar , 5-14 Rebar |
| Double Wire Bending (MM) | 5-12 Round Bar , 5-10 Rebar |
| Max Bending Angle ( ° ) | ±180 |
| Max Traction Speed (M/MIN) | 110 |
| Max Bending Speed ( ° /S) | 1200 |
| Angle Precision (°) | ±1 |
| Cut Length Precision (MM) | ±1 |
| Average Power (KW/H) | 7.5 |
| Total Power (KW) | 42 (include compressor) |
| Dimension (MM) (LxWxH) | 3900x1100x2100 |
| Weight (KG) | 2200 |
| Productivity (Double) (PCS/H) | 2200-2400 (i.e., 200*200MM Square) |
| Bending Direction | Double Direction |
| Certification | CE/ISO9001:2008 |
