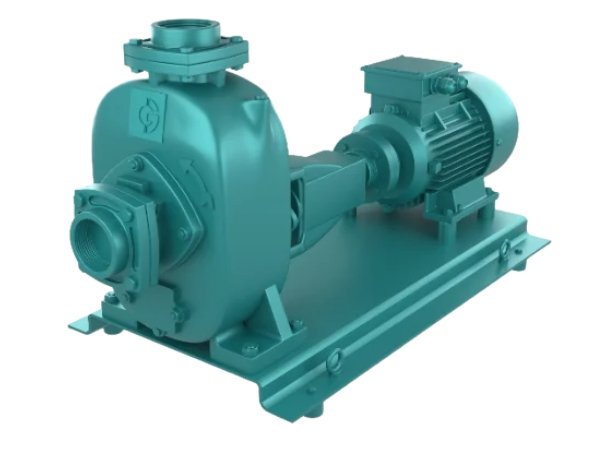

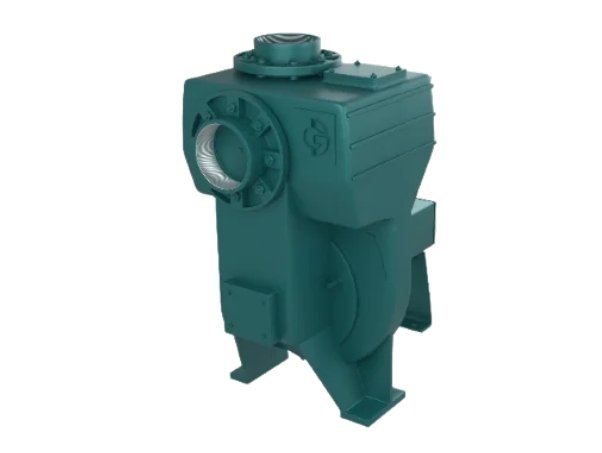

The CGDP Self Priming De-Watering Pump is engineered for high efficiency, reliable performance, and long service life. It features robust cast iron construction, dynamically balanced impellers, anti-rust coated hydraulic parts, and easy maintenance. Suitable for heavy-duty applications such as sewage handling, flood dewatering, mining, and construction site dewatering. Available in bare pump, monobloc pump set, and coupled pump set configurations.
| brand | Impala |
|---|
| Component | Material / Specification |
|---|---|
| Casing, Flanges, Motor Body, Impeller, Impeller Ring | Cast Iron FG200 |
| Shaft, Shaft Sleeve | SS410 |
| Motor Winding | Copper |
Monthly:
Six Monthly:
Yearly:
| Model | Power (kW/HP) | Speed (rpm) | Pipe Size (mm) | Head (m) | Discharge (LPM) |
|---|---|---|---|---|---|
| CGDP10S-BG | 7.5 / 10 | 1450 | 100 x 100 | 10-26 | 2000-750 |
| CGDP12S-BG | 9.3 / 12.5 | 1450 | 100 x 100 | 10-26 | 2400-1100 |
| CGDP25W-BG | 18.7 / 25 | 1450 | 150 x 150 | 10-26 | 4300-1400 |

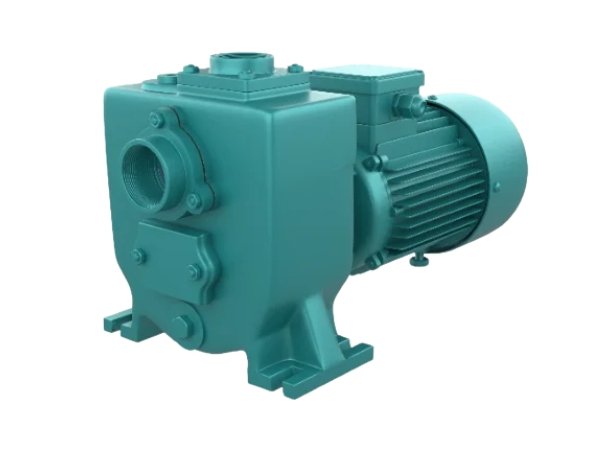

Dewatering Monobloc Performance
| Model | Power (kW/HP) | Speed (rpm) | Pipe Size (mm) | Head (m) | Discharge (LPM) |
|---|---|---|---|---|---|
| CGDP005J-MM-1P | 0.37 / 0.5 | 2850 | 40 x 40 | 6-20 | 60-200 |
| CGDP005J-MM | 0.37 / 0.5 | 2850 | 40 x 40 | 6-20 | 60-200 |
| CGDP01J-MM-1P | 0.75 / 1 | 2850 | 40 x 40 | 6-20 | 150-340 |
| CGDP01J-MM | 0.75 / 1 | 2850 | 40 x 40 | 6-20 | 150-340 |
| CGDP02M-MM-1P | 1.5 / 2 | 2850 | 50 x 50 | 6-20 | 120-430 |
| CGDP02M-MM | 1.5 / 2 | 2850 | 50 x 50 | 6-20 | 120-430 |
| CGDP03M-MM | 2.2 / 3 | 2850 | 50 x 50 | 6-20 | 140-500 |
| CGDP05Q-MM | 3.7 / 5 | 1450 | 80 x 80 | 6-20 | 200-700 |
