CGMini High-Speed Regenerative Self-Priming Pumps are engineered for reliable water supply to overhead tanks in bungalows, residential buildings, flats, hotels, hospitals, lawns, sprinklers, nursing homes, and clubs. Designed with high-quality materials, these pumps ensure durability, efficient operation, and long service life.
| brand | Impala |
|---|
| Component | Specification |
|---|---|
| Motor Body | Aluminium Extrusion / Cast Iron (CGmini BHIM) |
| Pump Casing & Adapter | Cast Iron FG 200 with CED Coating |
| Impeller | Forged Brass |
| Shaft | SS 410 |
| Winding | Copper |
| Stamping | High Grade Electrical Stamping |
| Mechanical Seal | Carbon vs Ceramic |
| Supply | 1Ph, 220V, 50Hz |
| Speed | 2850 RPM |
| Product Name | Model | Power (kW/HP) | Pipe Size (mm) | Head (m) | Discharge (L/H) |
|---|---|---|---|---|---|

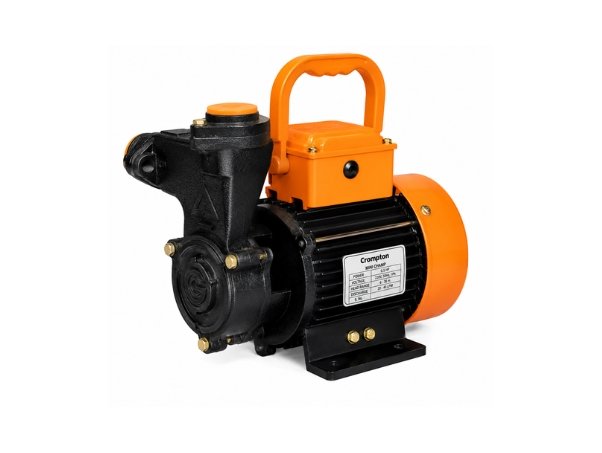

| Mini SERGEANT-II | CGDMM05MS/DS | 0.37 / 0.5 | 25×25 | 6 – 26 | 2000 – 500 |
| Mini SERGEANT-I | CGDMM10MS/DS | 0.75 / 1 | 25×25 | 6 – 26 | 2800 – 500 |

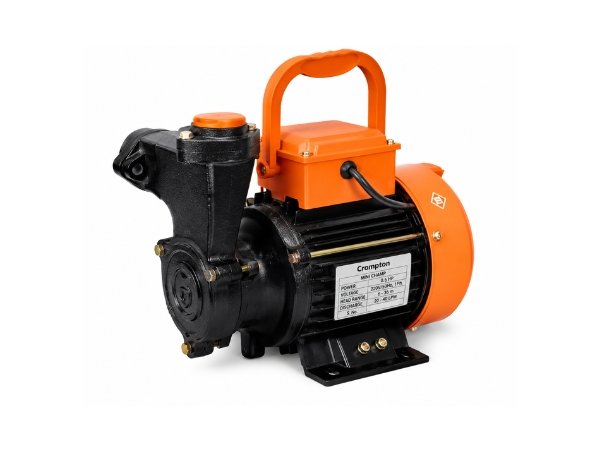

| Mini BHIM-II Plus | CGDMM05BHPLUS | 0.37 / 0.5 | 25×25 | 6 – 26 | 2500 – 500 |
| Mini BHIM-I | CGDMM10BH | 0.75 / 1 | 25×25 | 6 – 36 | 2800 – 750 |

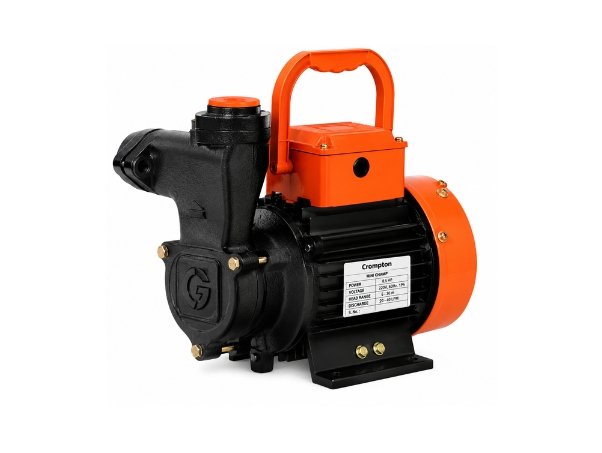

| Mini MAJOR-II | CGDMM05MJ** | 0.37 / 0.5 | 25×25 | 6 – 26 | 2100 – 500 |
| Mini MAJOR-I | CGDMM10MJ** | 0.75 / 1 | 25×25 | 6 – 36 | 2900 – 500 |

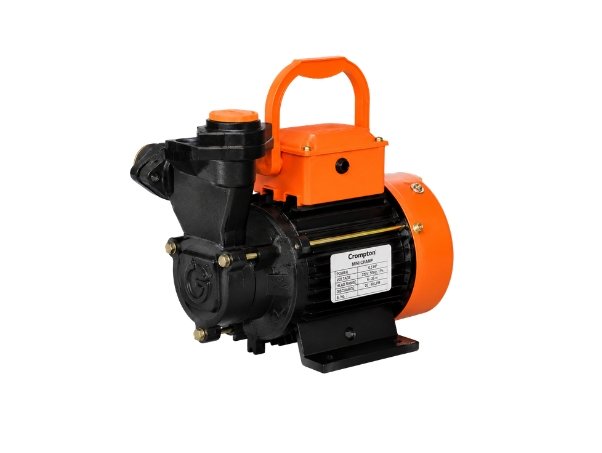

| Mini EMPIRE-II | CGDMM05ME* | 0.37 / 0.5 | 25×25 | 6 – 26 | 2100 – 500 |
| Mini EMPIRE-I | CGDMM10ME* | 0.75 / 1 | 25×25 | 6 – 36 | 2900 – 500 |

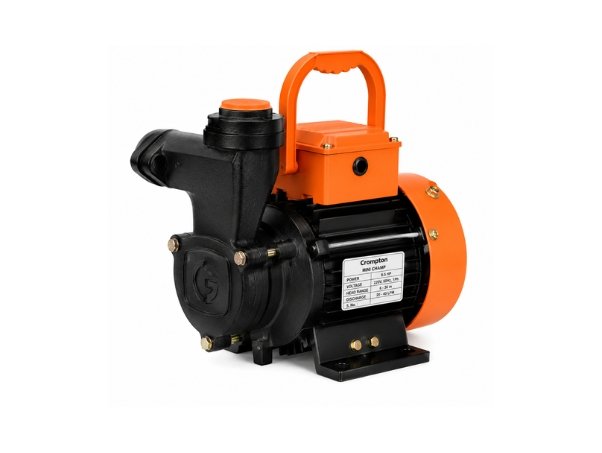

| Mini SPIKE-II | CGDMM05SP* | 0.37 / 0.5 | 25×25 | 6 – 26 | 2100 – 500 |
| Mini SPIKE-I | CGDMM10SP* | 0.75 / 1 | 25×25 | 6 – 36 | 2900 – 500 |

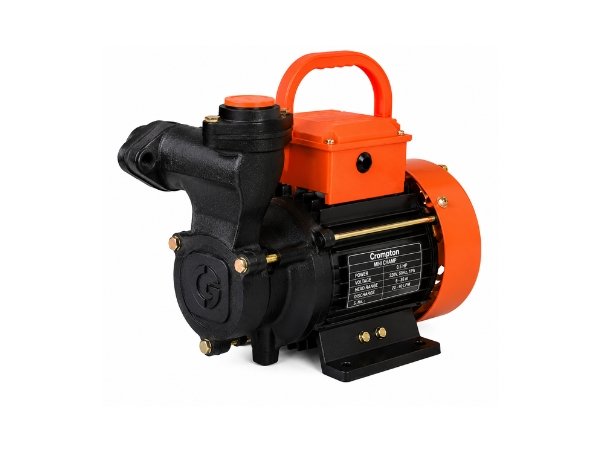

| FlowGANGA-II | CGDMM05FG* | 0.37 / 0.5 | 25×25 | 6 – 26 | 1900 – 500 |
| FlowGANGA-I | CGDMM10FG* | 0.75 / 1 | 25×25 | 6 – 36 | 2800 – 500 |

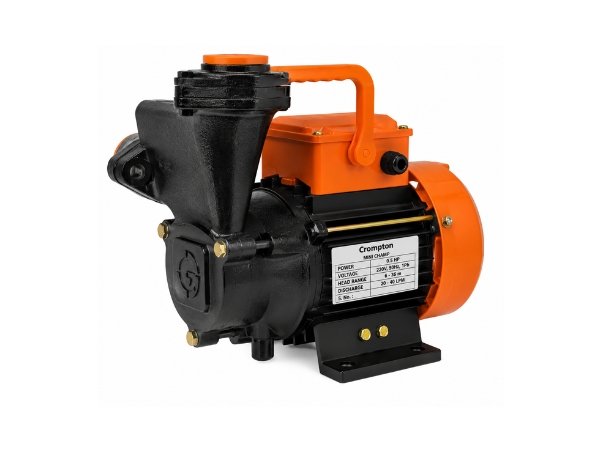

| MoGANGA-II | CGDMM05MG* | 0.37 / 0.5 | 25×25 | 6 – 26 | 1850 – 500 |
| MoGANGA-I | CGDMM10MG* | 0.75 / 1 | 25×25 | 6 – 36 | 2500 – 400 |

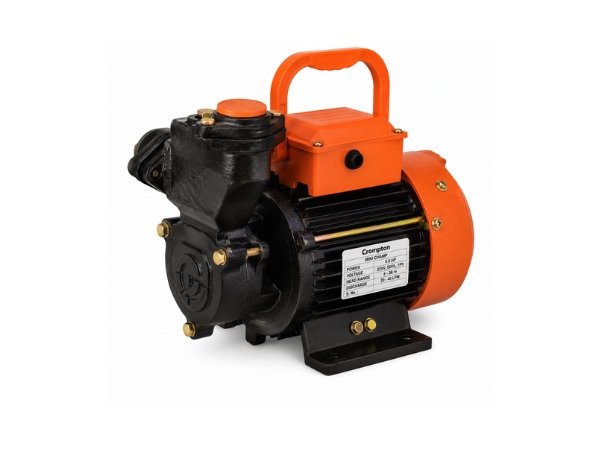

| EmpireNEO-II | CGDMM05MEN* | 0.37 / 0.5 | 25×25 | 6 – 26 | 1900 – 550 |
| EmpireNEO-I | CGDMM10MEN* | 0.75 / 1 | 25×25 | 6 – 36 | 2600 – 400 |
