CHAIN PULLEY BLOCK is a heavy-duty manual lifting tool designed for safe and efficient material handling. It comes in multiple load capacities (1T, 2T, 3T, and 5T) with a standard lift height of 3 meters. Built with durable alloy load chains (6mm to 10mm), it ensures smooth operation, high strength, and reliable performance for industrial applications.
| Model No. | Capacity (TON) | Standard Lift (M) | Tests Load (TON) | Load Chain Size (MM) | Falls of Load Chain | Force of Full Load (N) | Packaging Size (LxBxH MM) | N.W (Kgs) | G.W (Kgs) | Ctn/Qty |
|---|---|---|---|---|---|---|---|---|---|---|

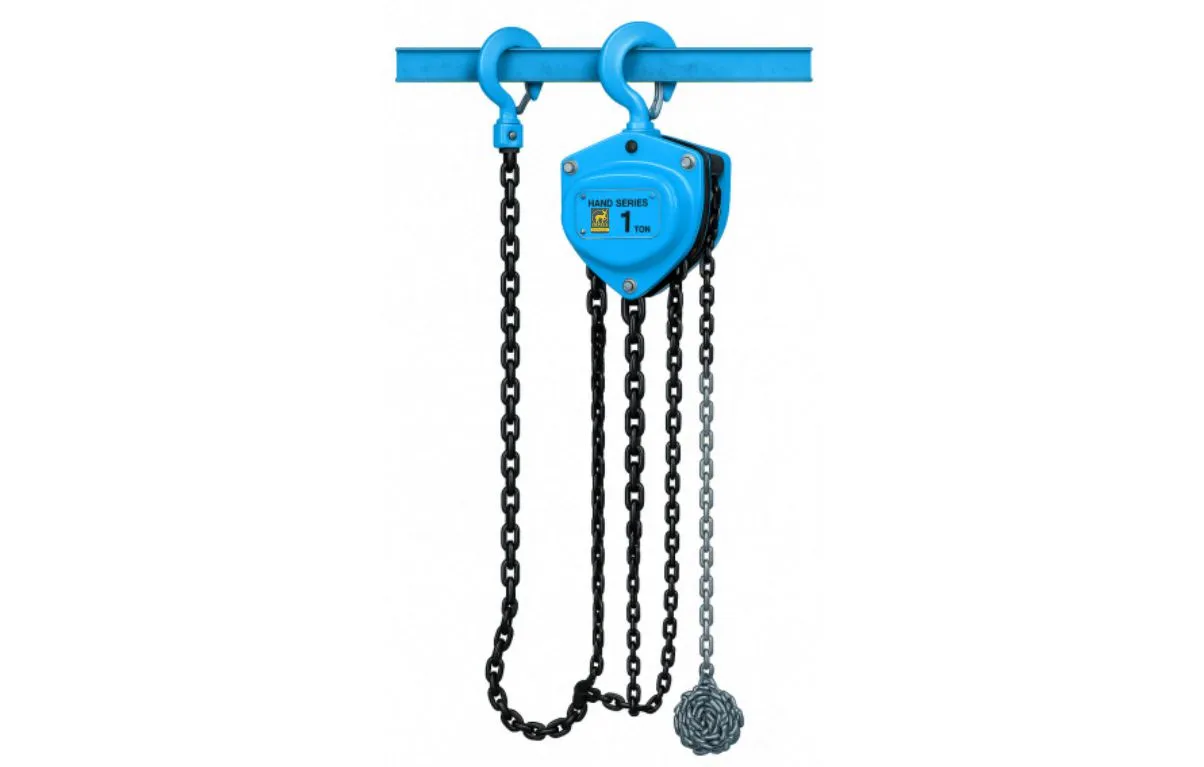

| IMKC-VD01 | 1T | 3 | 1.25 | 6mm | 1 | 320 | 300×180×250mm | 11.5kgs | 12.8kgs | 1 |

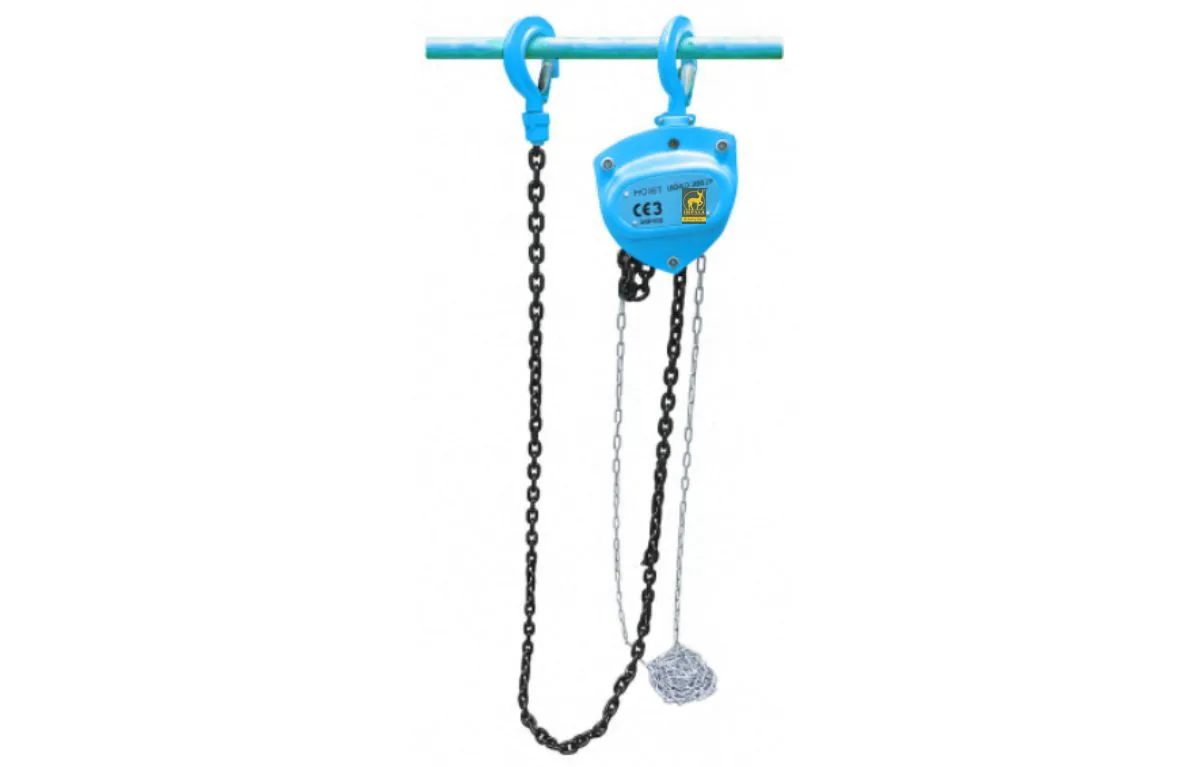

| IMKC-VD02 | 2T | 3 | 2.5 | 8×24mm | 1 | 365 | 320×220×280mm | 19.3kgs | 21.5kgs | 1 |

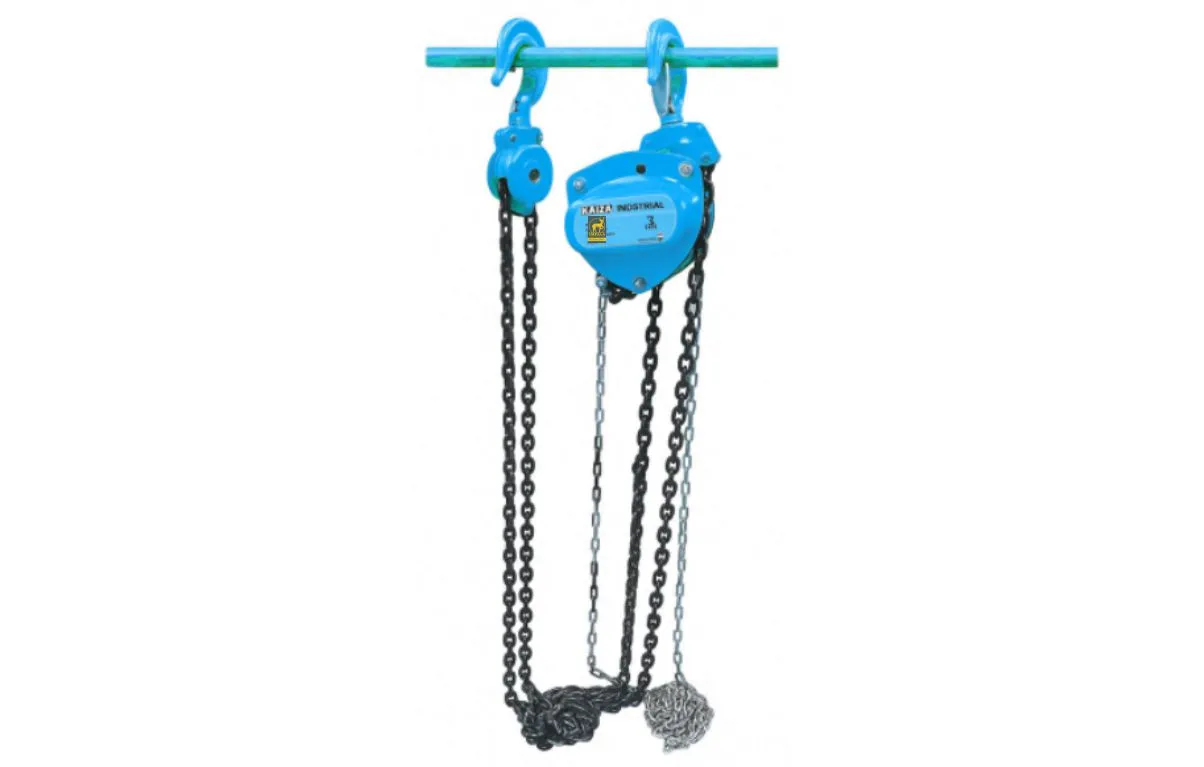

| IMKC-VD03 | 3T | 3 | 3.75 | 8mm | 2 | 385 | 440×320×250mm | 27kgs | 29kgs | 1 |
| IMKC-VD05 | 5T | 3 | 6.25 | 10mm | 2 | 405 | 450×330×340mm | 38kgs | 41kgs | 1 |
