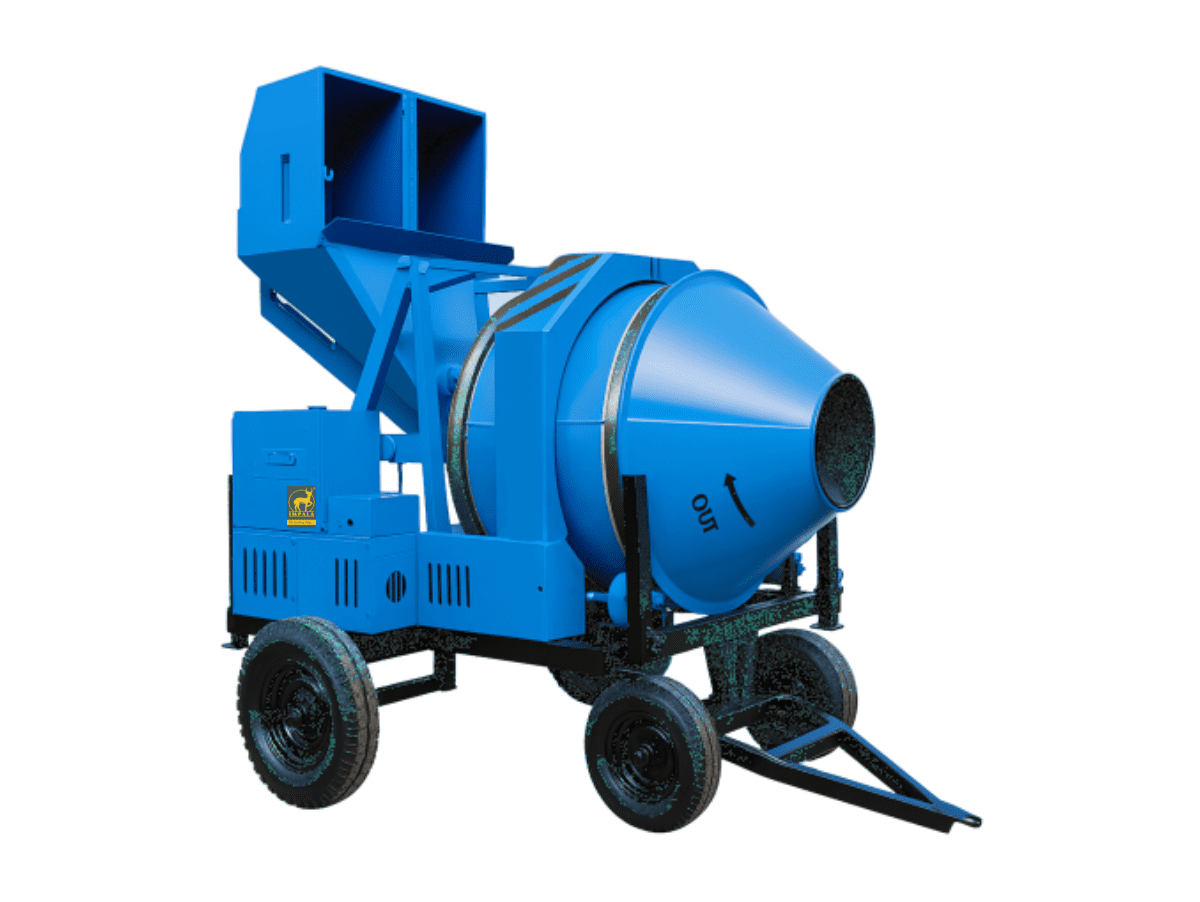

A compact concrete mixer designed for reliable small-to-medium batching needs. With a 0.6 Cu.M drum capacity and an 8 Cu.M/hour output, it delivers efficient mixing performance powered by a 7.5 HP motor. Ideal for construction sites requiring consistent productivity in a portable setup.
| Specification | IM 2000 |
|---|---|
| Drum Capacity | 0.6 Cu. M |
| Batch Capacity | 0.4 Cu. M |
| Output | 8 Cu. M/Hour |
| Prime mover | 7.5 HP Motor, 0.5 HP Water Pump |
| Gear Box Type | — |
| Chassis | — |
| Wheels | 600 × 16 Pneumatic Tyre – 2 Nos |
| 450 × 12 Pneumatic Tyre – 2 Nos | 600 × 16 Pneumatic Tyre – 4 Nos |
| Loading Hopper | — |
| Weighing System | — |
| Discharge Height | 1160 mm |
| Drum Dimensions | Ø1320 × 1570 mm |
| Drum Thickness | — |
| Drum Mouth Diameter | 500 mm |
| Rollers | Heavy-duty Roller – 4 Nos |
| Lubrication System | — |
| Dimensions (L × W × H) | 3425 × 2300 × 2260 mm |
| Weight | 1800 kg |
