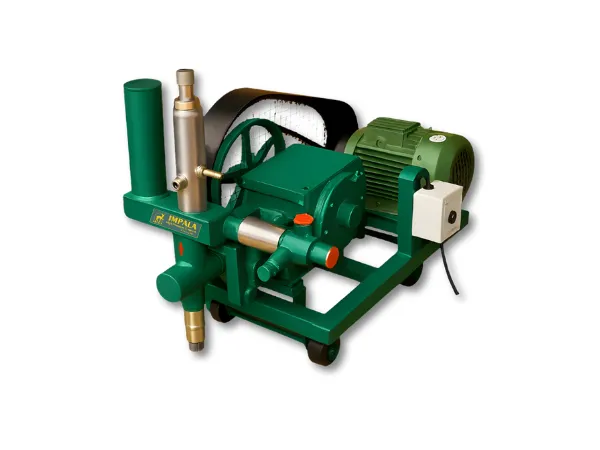

Hydrotest Pump (Motor Operated)
₹100.00
Motor Operated Hydrotest Pump is a high-performance pressure testing pump used to test the strength and leakage of pipelines, boilers, valves, and pressure vessels. Powered by an electric motor, it ensures consistent pressure, high efficiency, and is ideal for industrial applications requiring reliable and automated hydrostatic testing.
Add to wishlistAdd to compare
Special Features
- Electric motorized / engine-driven system
- Totally enclosed drive mechanism
- Heavy-duty precision gearbox
- Large air chamber
- Self-oiling system with quick-acting relief
- Totally dependable, reliable, and efficient performance
Application
- Boilers
- Pressure vessels
- C.I. mains casting parts
- Gas cylinders
- Pipes & tubes parts
- Pumps and valve body
- Subject to hydro testing
Standard Accessories with M.o.c
- Pressure release valve made from Stainless Steel 304 material (needle type valve)
- Discharge high pressure hose with attachment of 1/2″ inch BSP connection, length 2 meters
- Stainless Steel 304 glycerin-filled pressure gauge with 4″ inch dial (NABL calibrated)
- Discharge valve (NRV) made from Stainless Steel 304 material
- Suction and overflow nylon braided hose pipe, supple attachment of 1/2″ BSP, length 2 meters
- Suction & discharge valve made from Stainless Steel 304 material
- Air chamber made from Stainless Steel 304 material
- Pressure set valve made from Stainless Steel 304
- Distributor body made from Stainless Steel 304 material
- Pump stand made from mild steel 3″ x 1.5″ C channel
- Pump mounted on suitable trolley with rubber brake caster wheels
- Pulley guard made from mild steel material
- Pump and motor pulley made from mild steel material
- Test pressure up to 1200 kg/cm²
- Water flow capacity up to 120 LPH
- Motor up to 10 HP
