| Model |

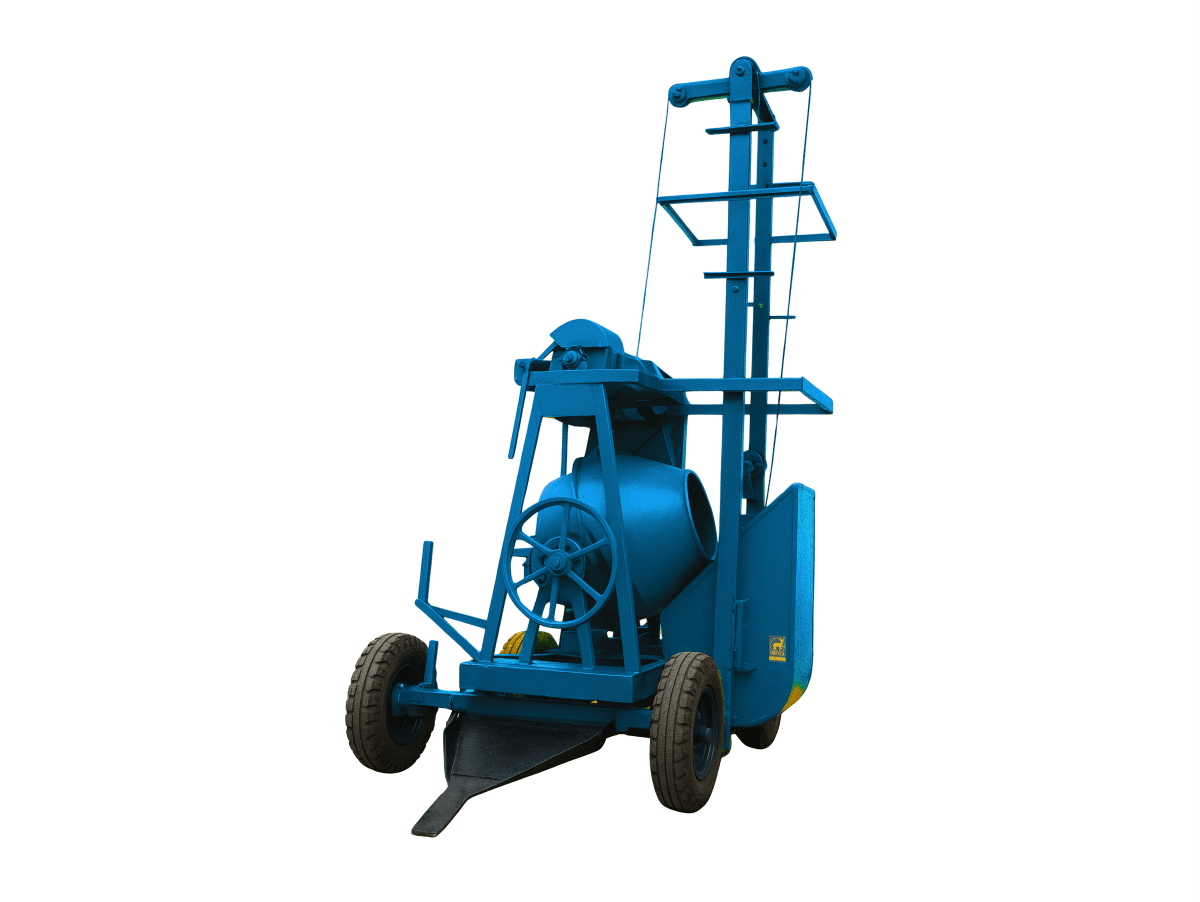

IM 1000 MCL |
| Capacity |
10/7 cft |
| Prime Mover |
10 HP Air-Cooled HSD Diesel Engine |
| Mixing Drum Volume |
500 litres |
| Height |
55 ft |
| Hoist Bucket Capacity |
250 litres |
| Drum Speed |
18 rpm |
| Yoke |
100 × 100 × 5 mm seamless M.S. pipe, Bearing system |
| Chassis |
Heavy Duty M.S. 125 × 65 mm Channel Chassis |
| Drive Chain |
Rolon Brand |
| Handi / Drum |
Heavy Duty C.I. Drum |
| Column / Tower |
100 × 50 C Channel Tower |
| Wire Rope |
12 mm, Usha Martin |
| Drive |
Clutch Type |
| Wheels |
600 × 16 pneumatic tyre with hub & bearing system, and pressed steel plate rims – 4 Nos |
| Dimensions |
L 2909 × W 2134 × H 2744 mm |
| Weight |
2200 kg |
