IM Rotary Vane Pump

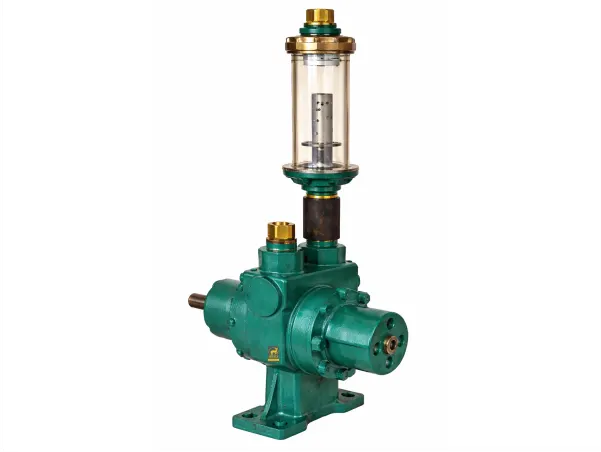

IM Rotary Vane Pump 03
IM Rotary Vane Pump 02

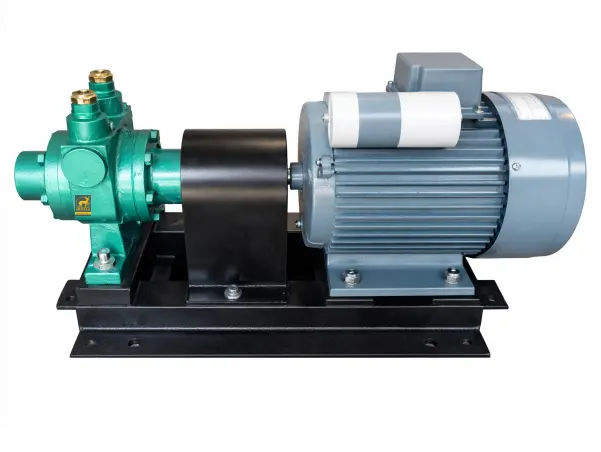

IM Rotary Vane Pump

₹100.00

Buy now
The IM Rotary Vane Pump is designed for efficient and reliable performance in fluid handling applications. Below are the technical specifications and required motor specifications for this pump.
Add to wishlist
ENQUIRY!
Categories: , Brand:

Additional information

brand

Impala

Technical Specifications

  • Pump Type: Rotary Vane Pump
  • Pump Make: “IMPALA”
  • Pump Model: RV-1
  • Inlet x Outlet Size: ½” x ½” BSP
  • Pump Capacity: 7 kg/minute
  • Maximum Pressure: 6 kg/cm²
  • Pump Weight: Approx. 5 kg (without motor)

Required Motor Specifications

  • Motor Type: 1 hp x 2900 rpm, non-flame-proof motor
  • Motor Construction: Totally enclosed fan-cooled squirrel cage induction motors
  • Motor Mounting: Horizontal foot-mounted B3 construction
  • Duty: Continuously rated S1 duty
  • Suitable for: Single-phase, 220 V, 50 Hz AC supply (110 V or 60 Hz available on request)
  • Insulation: Class “F” insulation suitable for ambient temperatures up to 45ºC
