Additional information
| brand | Impala |
|---|

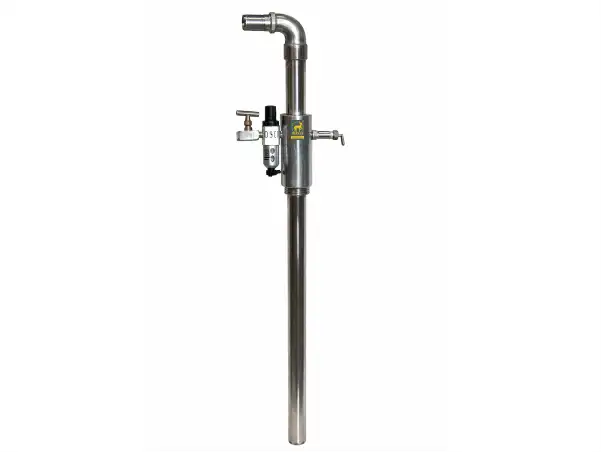

IM Stainless Steel Pneumatic Operated Force Type Barrel Pump
₹100.00
This stainless steel pneumatic pump is designed for safe and efficient transfer of food-grade liquids, chemicals, fuels, and flammable media. It is ideal for handling viscous and hazardous liquids with high reliability.
Applications
- Food syrups and ketchup
- Chemicals and paints
- Fuel and petroleum products
- Flammable and explosive liquids
- Liquids with fillers and sludge
Technical Specifications
| Flow Rate | 70 LPM |
| MOC | SS 316 |
| Inlet Diameter | 40 mm |
| Outlet Diameter | 25 mm |
| Air Hose Diameter | 8 mm |
| Safety Valve Pressure | 0.03 MPa |
| Air Pressure | 0.1 MPa |
| Pump Length | 1.12 meter |
| Tube Length | 1 meter |
| Head | 15 meters |
| Weight | 6 kg |
| Accessories | Filter gauge (included) |
Performance Table
| Air Pressure (Kg/cm²) | 2.9 | 2.1 | 2.5 |
|---|---|---|---|
| Head (Meters) | 0 | 10 | 15 |
| Flow (LPM) | 153 | 64 | 34 |
This pump is capable of handling water, oil, sludge, and explosive liquids when properly grounded.
