Additional information
| brand | Impala |
|---|

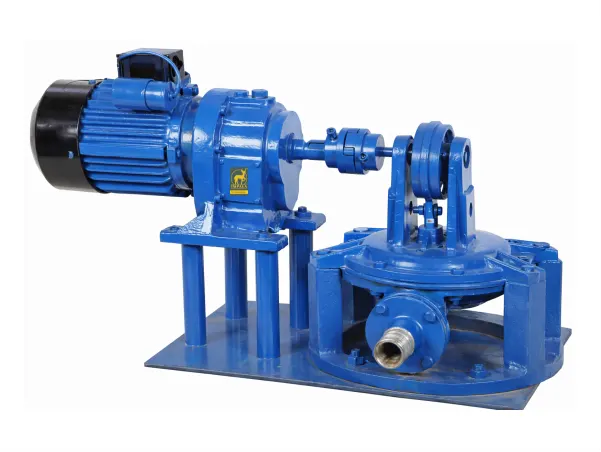

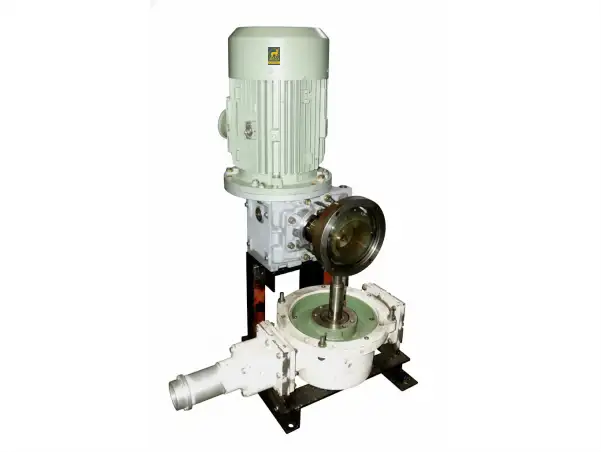

IMCI / IMSS Diaphragm Type Barrel Pump
₹100.00
IMCI / IMSS Diaphragm Type Barrel Pumps are designed for efficient transfer of liquids from barrels and containers. These pumps are suitable for handling liquids of varying viscosities and can operate in multiple positions, making them highly versatile for industrial applications.
Applications
- Barrel and drum liquid transfer
- Chemical and solvent handling
- Oil and viscous liquid transfer
- Industrial and process applications
Technical Specifications
| Pump Model | HDB CI-1 | HDB SS-1 |
|---|---|---|
| Capacity | 16 LPM | 16 LPM |
| Inlet x Outlet Size | 1″ x 1″ | 1″ x 1″ |
| Material of Construction | Cast Iron Construction | SS Construction |
Features
- Available in Cast Iron (CI) or Stainless Steel (SS) construction
- Operates in any position – vertical, horizontal, or upside down
- Very easy installation
- Simple design with only 4 parts
- Suitable for liquids of any viscosity
- PTFE diaphragm for high chemical resistance
- Discharge: 150 ml per rotation
