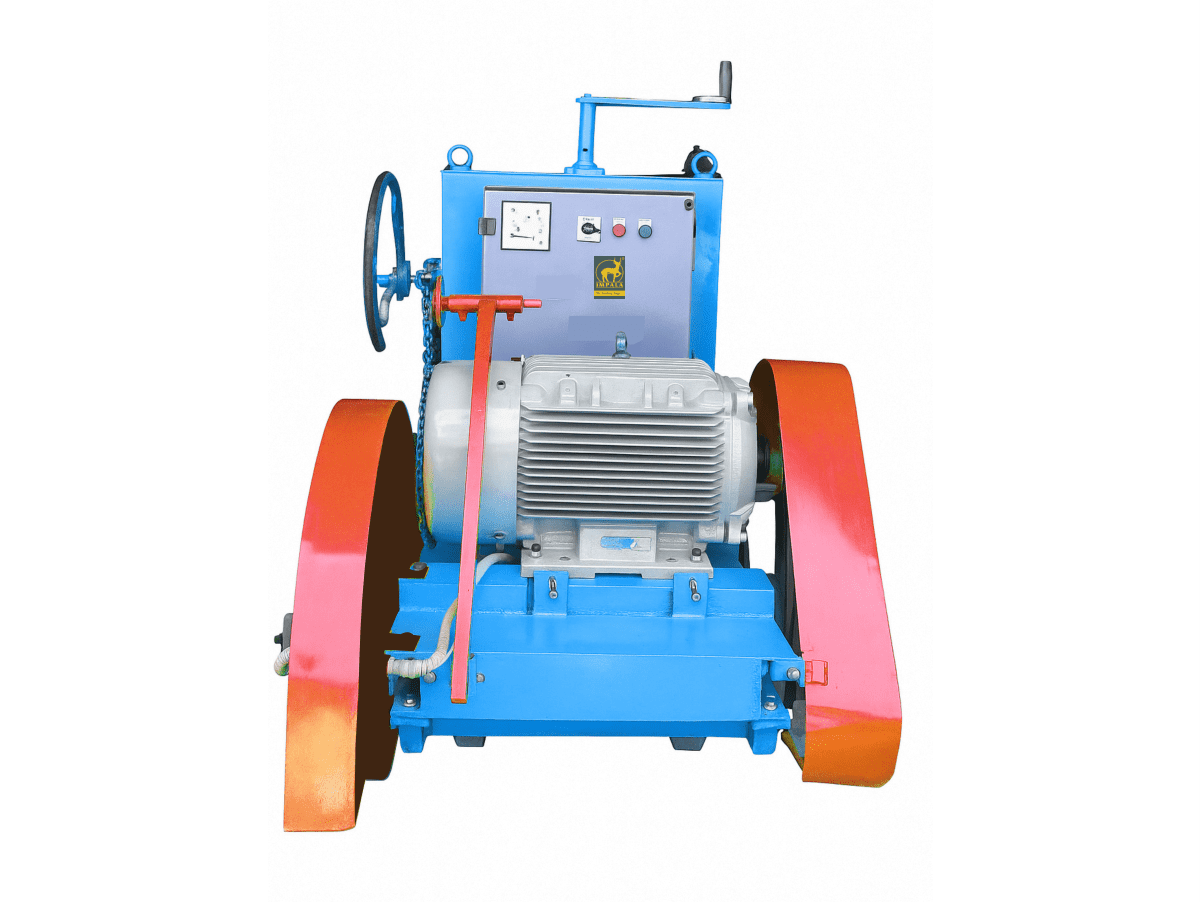

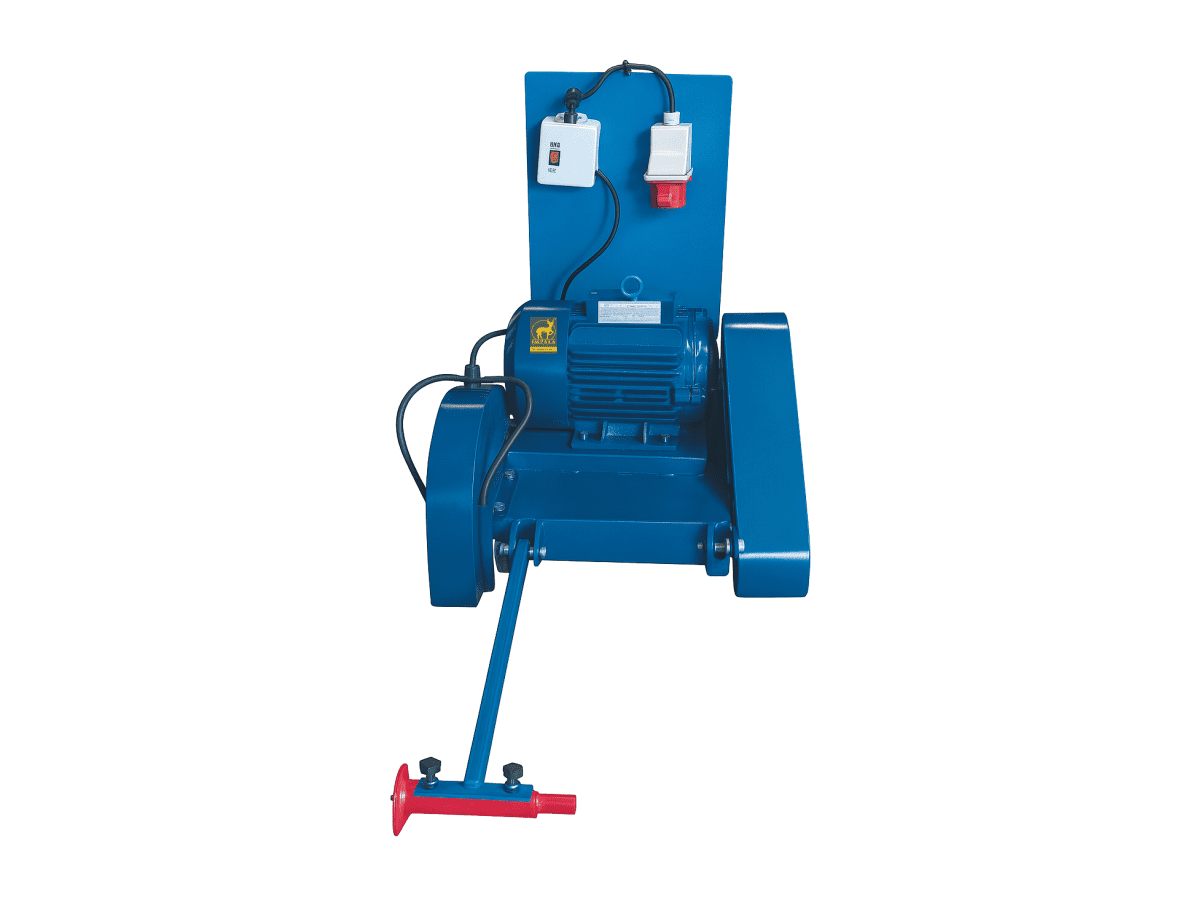

The IMGCM/CG Series Electric Concrete Cutters (7.5 to 30 HP) are high-performance 3-phase motor-driven machines designed for precise and deep concrete cutting applications. Built with Crompton electric motors, these models deliver powerful performance across a wide range of cutting depths from 2 inches to 16 inches. With sturdy construction and integrated water tank systems, they are ideal for industrial and heavy-duty construction projects.
| Parameter | IMGCM/CG/7.5 | IMGCM/CG/10 | IMGCM/CG/15 | IMGCM/CG/20 | IMGCM/CG/25 | IMGCM/CG/30 |
|---|---|---|---|---|---|---|
| Maximum Depth Cut | 2 inches | 4 inches | 7 inches | 10 inches | 12 inches | 16 inches |
| Prime Mover | 7.5 HP 3 Phase Electric Motor | 10 HP 3 Phase Electric Motor | 15 HP 3 Phase Electric Motor | 20 HP 3 Phase Electric Motor | 25 HP 3 Phase Electric Motor | 30 HP 3 Phase Electric Motor |
| Maker | Crompton | Crompton | Crompton | Crompton | Crompton | Crompton |
| Weight | 120 kg approx | 140 kg approx | 230 kg approx | 350 kg approx | 365 kg approx | 390 kg approx |
| Water Tank | 20 L | 20 L | 30 L | 30 L | 40 L | 40 L |
