Description

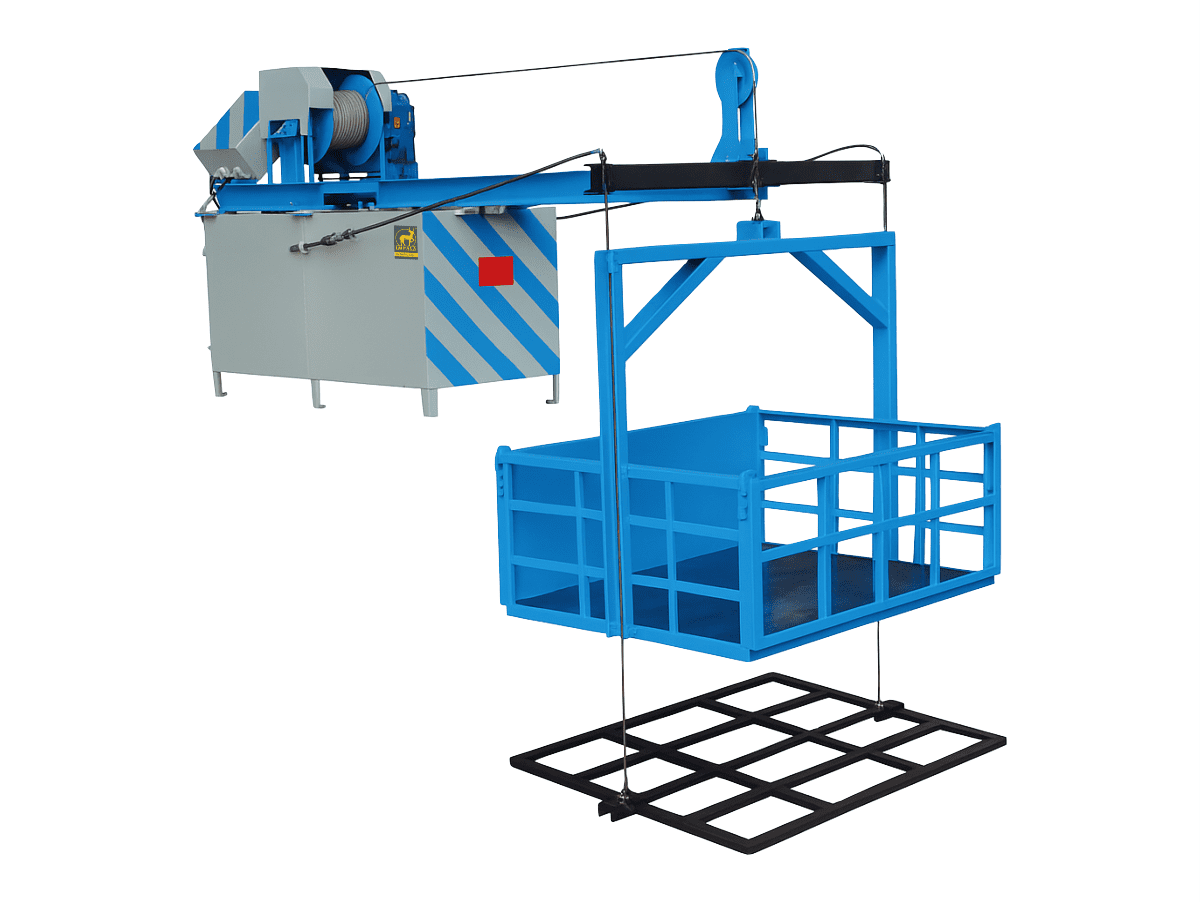

These heavy-duty material lifting machines are designed for high-rise construction projects requiring reliable vertical handling. The 500 kg model suits mid-level loads with a 6.5 ft boom and 5 HP motor, while the 1 Ton model offers higher lifting performance with a 7 ft boom and 7.5 HP motor. Both units provide smooth 360° rotation, robust Usha Martin wire ropes, and spacious buckets designed for stable material transport. With strong structural dimensions and increased bucket volumes, these models deliver dependable and efficient lifting for demanding site conditions.

Details

Parameter 500 kg Model 1 Ton Model
Capacity 500 kg 1 Ton
Height 30 – 120 meters 30 – 150 meters
Boom Length 6.5 ft 7 ft
Rotation 360° 360°
Prime Mover 5 HP Crompton Motor 7.5 HP Crompton Motor
Wire Rope 10 mm, 6×36 Usha Martin 12 mm, 6×36 Usha Martin
Bucket Size L 920 × W 920 × H 423 mm L 1035 × W 1035 × H 560 mm
Bucket Volume 0.225 cu. m 0.415 cu. m
Overall Dimensions L 4673 × W 762 × H 1980 mm L 5614 × W 813 × H 1980 mm
Weight 700 kg 1200 kg
