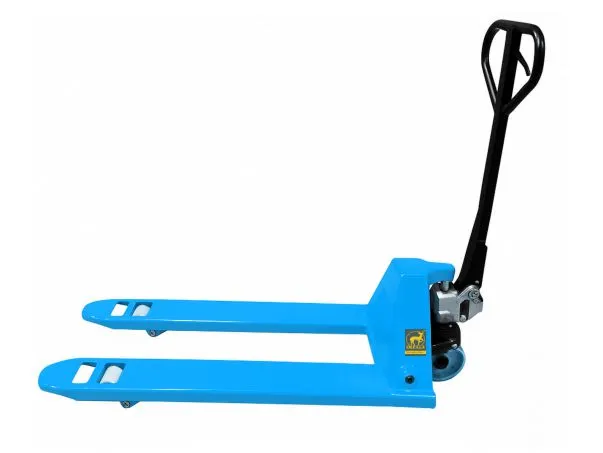

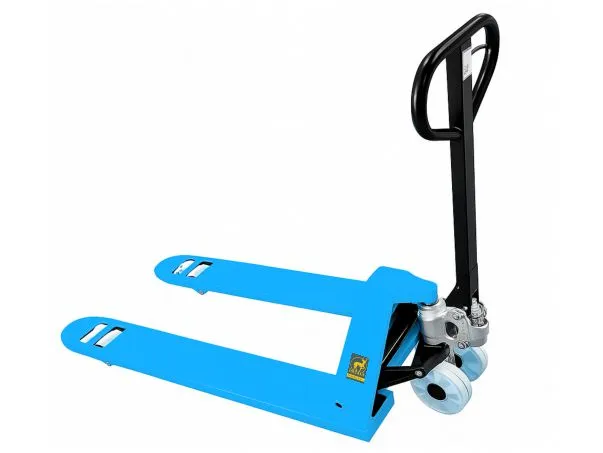

The Pallet Jacks (IMKCOPA Series) are robust and efficient tools designed for lifting and transporting pallets with various weight capacities. These pallet jacks come in different models with varying fork sizes, height adjustments, and load capacities, making them suitable for various industrial applications.
| Model No. | Capacity (Kg) | Min Fork Height (MM) | Max Fork Height (MM) | Steering Wheel (MM) | Fork Wheel (MM) | Total Height (MM) | Total Length (MM) | Nominal Length (MM) | Nominal Width BS (MM) |
|---|---|---|---|---|---|---|---|---|---|
| IMKCOPA-2T | 2000 | 85 | 200 | 180×50 | 80×70 | 1220 | 1560 | 1150/1200 | 550/685 |
| IMKCOPA-2.5T | 2500 | 85 | 200 | 180×50 | 80×70 | 1220 | 1560 | 1150/1200 | 550/685 |
| IMKCOPA-3T | 3000 | 85 | 200 | 180×50 | 80×70 | 1220 | 1560 | 1150/1200 | 550/685 |
| Model No. | Fork Size (MM) | Thickness of Min Plate (MM) | N.W (Kg) | Overall Dimension (MM) | Ctn/Qty |
|---|---|---|---|---|---|
| IMKCOPA-2T | 160×65 | 3.75 | 66-67 | 2260x550x620mm | 1 |
| IMKCOPA-2.5T | 160×65 | 3.75 | 69-70 | 2260x550x630mm | 1 |
| IMKCOPA-3T | 160×65 | 3.75 | 71-72 | 2260x550x630mm | – |
