Additional information
| brand | Impala |
|---|
Application
Public Utilities
- For pumping muddy water, sewage, polluted liquids, solids, and swimming pools.
- Dewatering basements, trenches, and construction sites.
- Onboard ships – for bilge pumping, deck wash, and engine cooling.
Industrial
- Handling petroleum products, ceramic products, chemicals, and use in thermal plants.
- Used in tiles & marble factories and effluent treatment plants.
Marine Works
- Handling liquids from docks, ports, and vessels.
Salvage Operations
- Firefighting applications.
Mobile Machinery
- Cooling water for marine engines and shovels.
- Any application where priming is to be avoided.
Features
- Excellent quick automatic priming action without foot valve up to 8 meters.
- Automatic air release during priming.
- Back pull-out design for easy maintenance without disturbing pipe lines.
- Dynamically balanced rotating parts ensure minimal vibration.
- High efficiency due to superior hydraulic design.
- Non-clog impellers capable of handling solid particles up to 16 mm.
- Minimum number of parts for fast, low-cost repairs.
- Economical pricing with excellent performance.

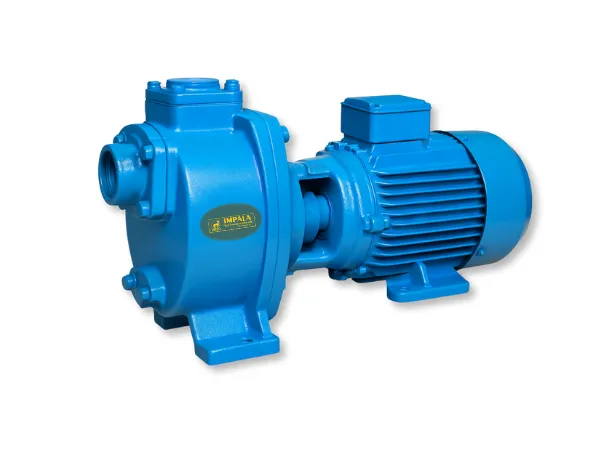

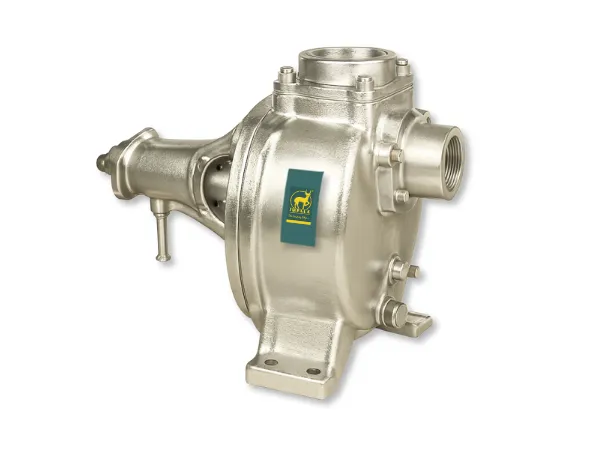

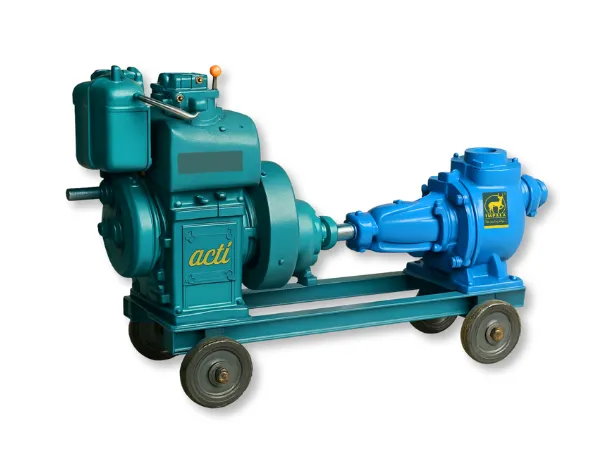

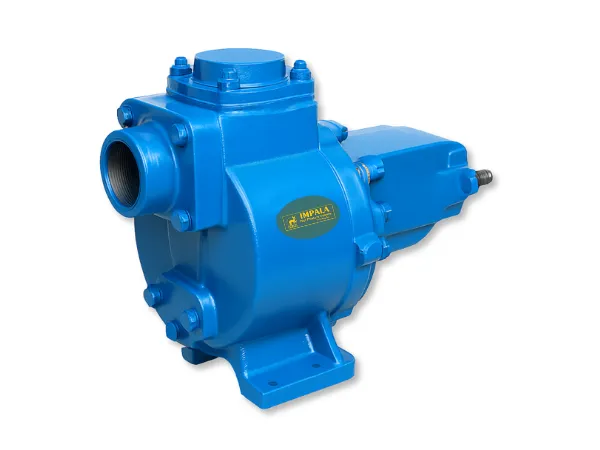

- Available in Bare, Coupled, Monoblock, Belt Driven, and Engine Driven versions.
- Optional pump trolley/trailer for easy mobility.
- Graded casting and precision-machined components ensure long service life.
- Available with closed impellers for clear liquids.
- Monoblock pumps are built to withstand wide voltage fluctuations.
- Spare parts are inexpensive and easily available.
- Pumps can be fitted with mechanical seals as per customer requirements.
Material of Constructions
| Component | Material |
|---|---|
| Casing | Cast Iron / SS-304 (CF-8), SS-316 (CF-8M) / Alloy-20 |
| Impeller | Cast Iron / CF-8 / CF-8M / Bronze |
| Diffuser | Cast Iron / CF-8M / Bronze |
| Shaft | EN-8 / SS 304 / SS 316 |
| Sleeve | SS-410 / SS 304 / SS 316 / Bronze |
| Bearing Housing | Cast Iron |
| Sealing | Tiwa / Carbon – Ceramic Seal / TC-TC Seal |
