Public utilities:
Industrial:
Marine Works:
Salvage Operations:
Mobile Machinery:
• Excellent self-priming capability up to 8 metres without the need for a foot valve.
• Automatic air release during the priming process.
• Back pull-out design enables easy maintenance without disturbing pipeline connections.
• Dynamically balanced rotating parts ensure smooth operation with minimal vibration.
• High hydraulic efficiency through optimized hydraulic design.
• Non-clog impellers capable of handling solids up to 16 mm.
• Simple construction with fewer parts enables quick and economical maintenance.
• Available in bare shaft, motor-coupled, monoblock, belt-driven and engine-driven configurations.
• Available with trolley or trailer mounting for easy transportation.
• Precision castings and accurate machining ensure long service life.
• Available with closed impellers for clean liquid applications.
• Monoblock models are designed to withstand wide voltage fluctuations.
• Economical and readily available spare parts.
• Mechanical seals can be supplied as per customer requirements.
| Component | Material |
|---|---|
| Casing | Cast Iron / SS 304 / SS 316 / Alloy 20 |
| Impeller | Cast Iron / CF-8 / CF-8M / Bronze |
| Diffuser | Cast Iron / CF-8M / Bronze |
| Shaft | EN-8 / SS 304 / SS 316 |
| Sleeve | SS 410 / SS 304 / SS 316 / Bronze |
| Bearing Housing | Cast Iron |
| Sealing | Carbon–Ceramic / TC–TC |

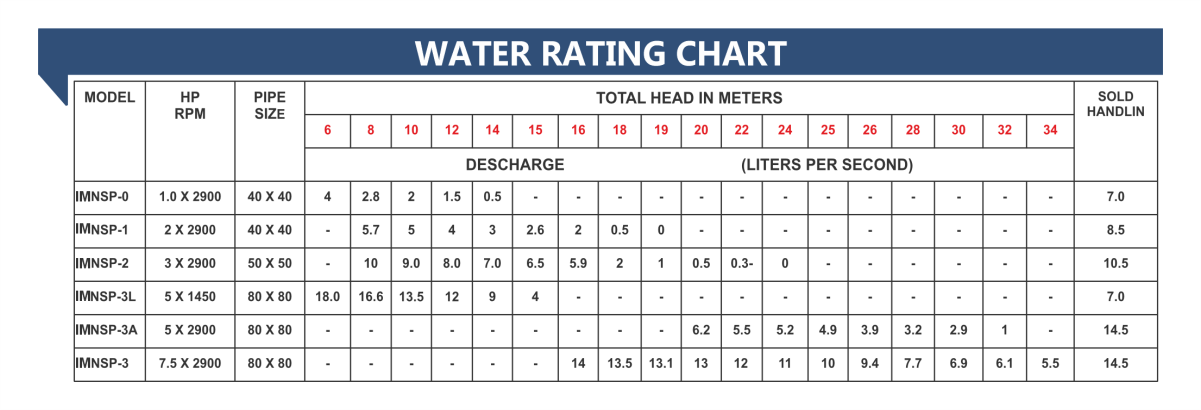

Performance data is based on testing at 2900 RPM, 50 Hz, using clear water.
Note: Special pumps with higher capacity and head are available on request.
