Additional information
| brand | Impala |
|---|
IMPCP
₹100.00

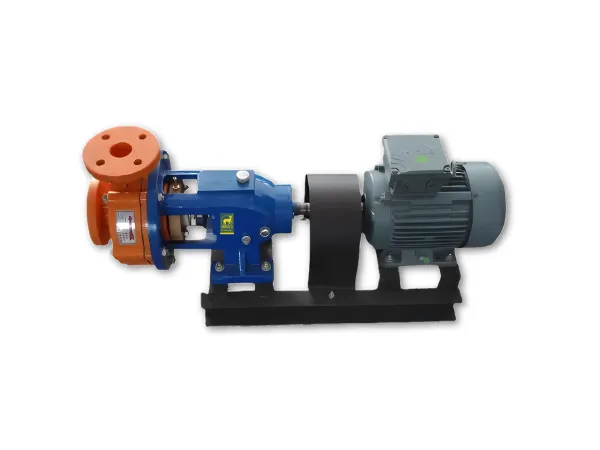

IMPALA Polypropylene centrifugal pumps are ideal for handling highly corrosive chemicals and acids. Widely used in water treatment, effluent processing, chemical filtration, and scrubbing systems, these pumps offer excellent resistance to aggressive media such as H₂SO₄, H₃PO₄, HF, Cl₂, Br₂, NH₃, and more. Perfect for pharmaceuticals, fertilizer plants, atomic power plants, and vacuum ejector systems, they ensure reliable, leak-free performance in demanding industrial environments.
Add to wishlistAdd to compare
Applications
- Water Treatment Plants, Effluent Treatment, and Filter Presses for dyes and chemicals
- Fertilizer Plants, Thermal and Atomic Power Plants
- Drugs & Pharmaceutical Industries
- Descaling of tubes and scrubbing of corrosive gases like Cl2, Br2, I2, SO2, NH3, F2, etc.
- Excellent for vacuum ejectors
- Transferring concentrated HCl from road tankers
- Paper & Pulp Industries, Pickling in Steel Rolling Mills
- Caustic Soda Plants: Chlorinated Brine, Concentrated HCl, Dilute H2SO4, etc.
- Phosphoric Acid Plants: H3PO4, H2SO4, HF and their mixtures (with or without solids like gypsum) up to 40% concentration
- Gas Washing Plants: Scrubbed liquids containing Cl2, Br2, F2, I2, SO2, SO3, CO2, NH3, etc., replacing Hastelloy
- Rayon Plants: Spin bath solutions (H2SO4, ZnSO4, NaSO4, etc.), Electroplating
Material of Construction
- Casing: Top centerline discharge with integrated flanges. Single-piece, jointless casing formed from injection-molded
Polypropylene / PVDF / UHMWPE. - Impeller: Hydraulically balanced and accurately matched to the casing profile. Semi-open type with particle shroud and
glass-finished flow passages for high efficiency and low NPSH performance. Made from compression-molded
Polypropylene / PVDF / UHMWPE. - Shaft: Constructed from SS 304, protected by a shaft sleeve made of Alloy-20, Alumina-filled Teflon, or Ceramic.
- Bearing Housing: Made from heavy-duty graded casting.
- Bearing: Fitted with SKF ball bearings for smooth and reliable operation.
- Mechanical Seal: Rotary part made of glass-filled Teflon; stationary part made of high alumina-filled ceramic.
- Distance Piece: Heavy-duty, one-piece injection-molded polypropylene.
Range
- Head: Up to 60 meters
- Pump Size: 25 mm to 150 mm
- Capacity: Up to 180 m³/hr
- Speed: 1440/2880 RPM at 50 Hz, 1750/3500 RPM at 60 Hz
- Temperature: Up to 110°C
Temperature Resistance
- PP (Polypropylene): 50°C to 80°C
- PPH (Polypropylene Homopolymer): 90°C to 100°C
- PVDF (Polyvinylidene Fluoride): 100°C to 115°C
Details
| MODEL | SUCTION (MM) | DELIVERY (MM) | IMPELLER (MM) | HP | RPM | Capacity in M³/hr (Head in meter) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 11 | 08 | 05 | 02 | 00 | 10 | 07 | 04 | 01 | 11.5 | ||||||
| RE-100 | 25 | 25 | 100 | 1 | 2900 | 04 | 06 | 07 | 09 | 11.5 | ||||||
| RE-120 | 40 | 32 | 120 | 2 | 2900 | 19 | 15 | 10 | 05 | |||||||
| RE-50R | 40 | 40 | 190 | 2 | 1440 | 26 | 25 | 17 | 13 | 16 | 2.0 | |||||
| RE-130 | 50 | 40 | 135 | 3 | 2900 | 22 | 18 | 13 | 08 | 06 | ||||||
| RE-160R | 40 | 40 | 140 | 3 | 2900 | 25 | 22 | 15 | 09 | 05 | ||||||
| RE-50 | 75 | 40 | 205 | 3 | 1440 | 16 | 15 | 10 | 06 | 03 | 23 | |||||
| RE-160 | 75 | 40 | 157 | 5 | 2900 | 32 | 28 | 24 | 20 | 15 | ||||||
| RE-55 | 75 | 50 | 210 | 5 | 1440 | 46 | 37 | 30 | 25 | 20 | 06 | 12 | 14 | |||
| RE-170 | 75 | 50 | 160 | 7.5 | 2900 | 50 | 45 | 40 | 35 | 30 | ||||||
| RE-40 | 50 | 40 | 190 | 12.5 | 2900 | 25 | 30 | 35 | 40 | 45 | 50 | |||||
