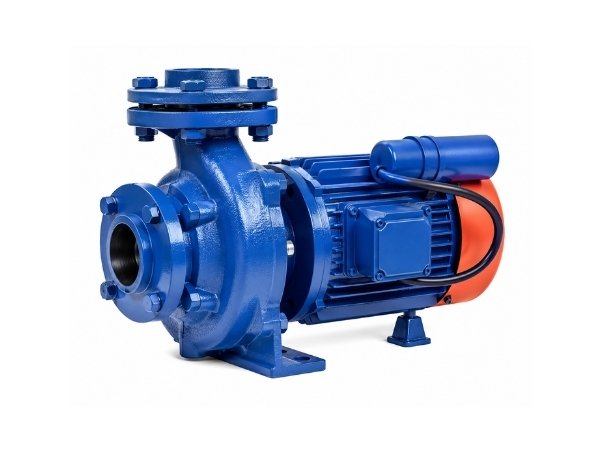

The KDS Single Phase Monobloc Pump is a reliable and energy-efficient water pumping solution designed for domestic, agricultural, and water transfer applications. Engineered with a robust motor and wide voltage compatibility, it delivers consistent performance with lower energy consumption. Featuring thermal overload protection, CED coating, automatic air release, and dynamically balanced rotating parts, the KDS pump ensures smooth operation, durability, and longer service life.
| brand | Impala |
|---|
✔ Wide Voltage Design – Designed to withstand voltage fluctuations and reduce motor burning caused by low/high voltage.
✔ Replaceable Wearing Parts – Easily accessible components for simplified maintenance and longer pump life.
✔ TOP – Thermal Overload Protector – Protects the motor from overloading and shields associated circuits from fault currents.
✔ CED Coating Protection – Advanced Cathodic Electro Deposition coating enhances corrosion resistance and increases product durability.
✔ Automatic Air Release – Automatically releases air during startup for smoother pump operation.
✔ High Efficiency & Energy Saving Design – Optimized for lower energy consumption and reduced operating costs.
✔ Dynamically Balanced Rotating Parts – Minimizes vibration and ensures stable, long-lasting performance.
✔ Overload Prevention Design – Reduces chances of motor burnout and lowers maintenance costs.
| Specification | Details |
|---|---|
| Head Range | Up to 52 Meters |
| Discharge Range | Up to 28 LPS |
| Power Rating | 0.37 to 3.7 kW (0.5 to 5.0 HP) |
| Voltage Range | 180 to 240 Volts (Single Phase) / 120 to 220 Volts (Low Voltage) / 230 to 400 Volts (“P” Series) |
| Insulation | B / F Class |
| Protection | IP44 |
| Component | Material |
|---|---|
| Impeller | Cast Iron / Noryl |
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
| Sealing | Mechanical Seal |
