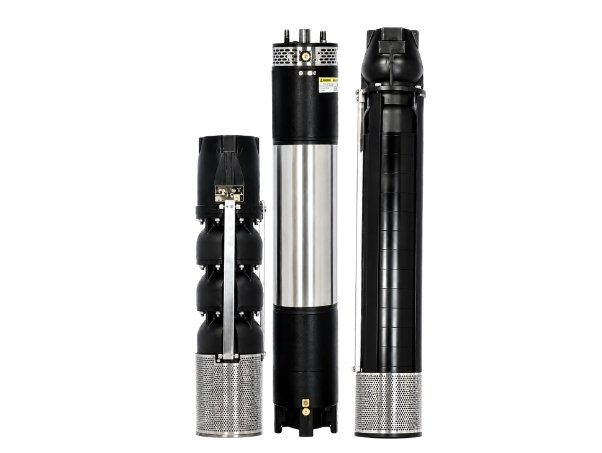

The KS8 20 CM Borewell Submersible Pump is a heavy-duty, water-cooled pumping solution designed for high-capacity irrigation, agricultural operations, rural water supply, and industrial water transfer. Built with 99.9% pure electro-grade copper rotor, stainless steel components, sand fighter technology, and CED-coated parts, KS8 ensures superior efficiency, long operational life, and reliable performance, even in sandy borewell conditions.
| brand | Impala |
|---|
✔ Wide Voltage Motor Design with Copper Rotor – Powered by 99.9% pure electro-grade copper rotor, ensuring efficient operation even during voltage fluctuations with minimum discharge drops.
✔ Sand Fighter Design – Specially designed to restrict sand entry into the motor, protecting bushes and enhancing pump life in sandy borewells.
✔ Dynamically Balanced Rotating Parts – Reduces vibrations and component wear for smoother, stable, and long-lasting performance.
✔ Longer & Trouble-Free Life – Constructed using graded cast iron components, stainless steel shaft, stainless steel impellers, bronze bushes, and heavy-duty carbon + stainless steel thrust plate for maximum durability.
✔ High Efficiency & Energy Saving Design – Optimized hydraulic design provides better efficiency while reducing power consumption and operational costs.
✔ CED – Cathodic Electro Deposition Coating – Provides up to 5 times better corrosion resistance compared to conventional coating methods for extended pump life.
✔ Design to Prevent Overloading – Protects the motor against overload during low-head operation, minimizing breakdowns and maintenance costs.
✔ Glycol-Mixed Water Cooling – Motor is filled with specially developed glycol-mixed water to improve anti-freezing properties and prevent corrosion.
| Specification | Details |
|---|---|
| Head Range | Up to 270 Meters |
| Discharge Range | Up to 2700 LPM |
| Power Rating | 4.5 to 45 kW (6 to 60 HP) |
| Voltage Range | 280 to 440 Volts (Three Phase) |
| Insulation | B Class |
| Cooling Type | Water Cooled |
| Protection | IP68 |
| Component | Material |
|---|---|
| Impeller | Stainless Steel |
| Diffuser Casing / Bowl | Cast Iron |
| Diffuser | Cast Iron |
| Pump Shaft | Stainless Steel |
| Motor Body | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Finished Rotor | Copper |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Pump / Motor Bushes | NBR / LTB |
| Thrust Bearing | Carbon + Stainless Steel |
Sold & Supplied by NIPA – Trusted Supplier of Kirloskar Brand Products.
