The IMFPY Series offers a range of hydraulic pumps with varying capacities and oil capacities, ideal for lifting applications. These pumps are designed for efficient performance with effective areas ranging from 9.6 cm² to 284.3 cm², offering a reliable solution for heavy-duty tasks.
| Model No. | Capacity (Ton) | Effective Area (CM²) | Oil Capacity (CM³) | Closed Height (A) (MM) | Stroke (MM) | Extended Height (B) (MM) | Outside Dia ExF (MM) | Inside Dia C (MM) | Piston Rod Dia D (MM) | G.W. (KG) | Ctn/Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IMFPY-5 | 5 | 67.9 | 9.6 | 7 | 40 | 47 | 64×45 | 35 | 25 | 0.75 | 4 |

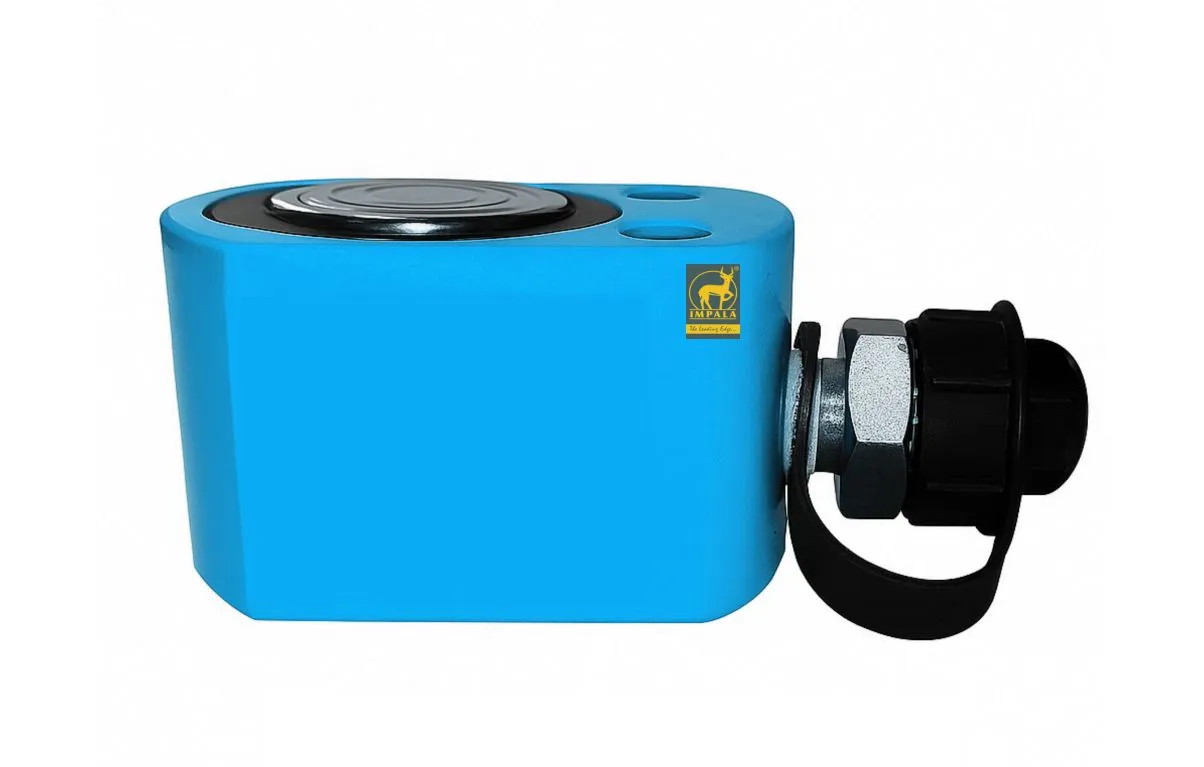

| IMFPY-10 | 10 | 111.5 | 15.9 | 48 | 40 | 88 | 83×60 | 40 | 30 | 1.4 | 4 |

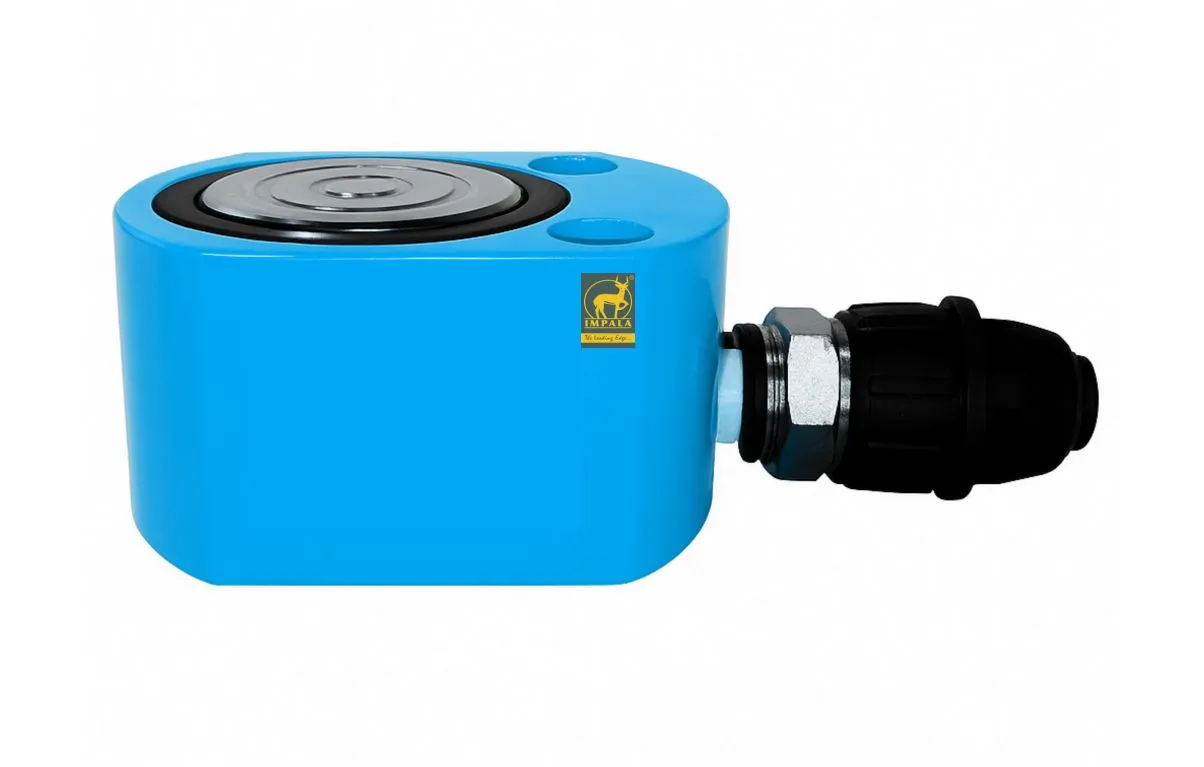

| IMFPY-20 | 20 | 198 | 28.3 | 53 | 56 | 109 | 99×76 | 47 | 32 | 2.7 | 4 |

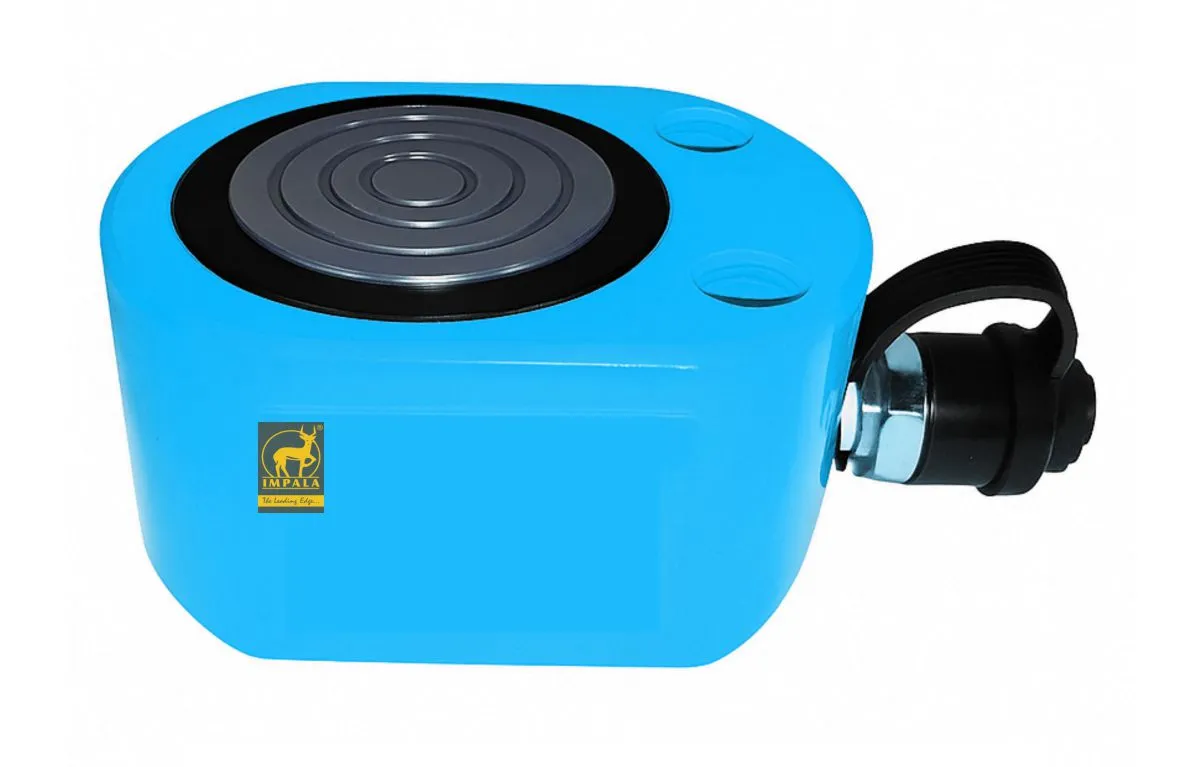

| IMFPY-30 | 30 | 309.9 | 44.2 | 55 | 62 | 115 | 123×98 | 58 | 36 | 3.7 | 4 |
| IMFPY-50 | 50 | 496 | 70.1 | 58 | 67 | 125 | 148×120 | 60 | 42 | 5.5 | 2 |
| IMFPY-100 | 100 | 993 | 140.3 | 67 | 75 | 142 | 188×160 | 76 | 50 | 9.6 | 2 |
| IMFPY-150 | 150 | 1496 | 213.7 | 72 | 90 | 162 | 215×190 | 90 | 55 | 13.8 | 2 |
| IMFPY-200 | 200 | 1984 | 283.4 | 110 | 120 | 230 | 255×244 | 130 | 65 | 18.5 | 2 |
