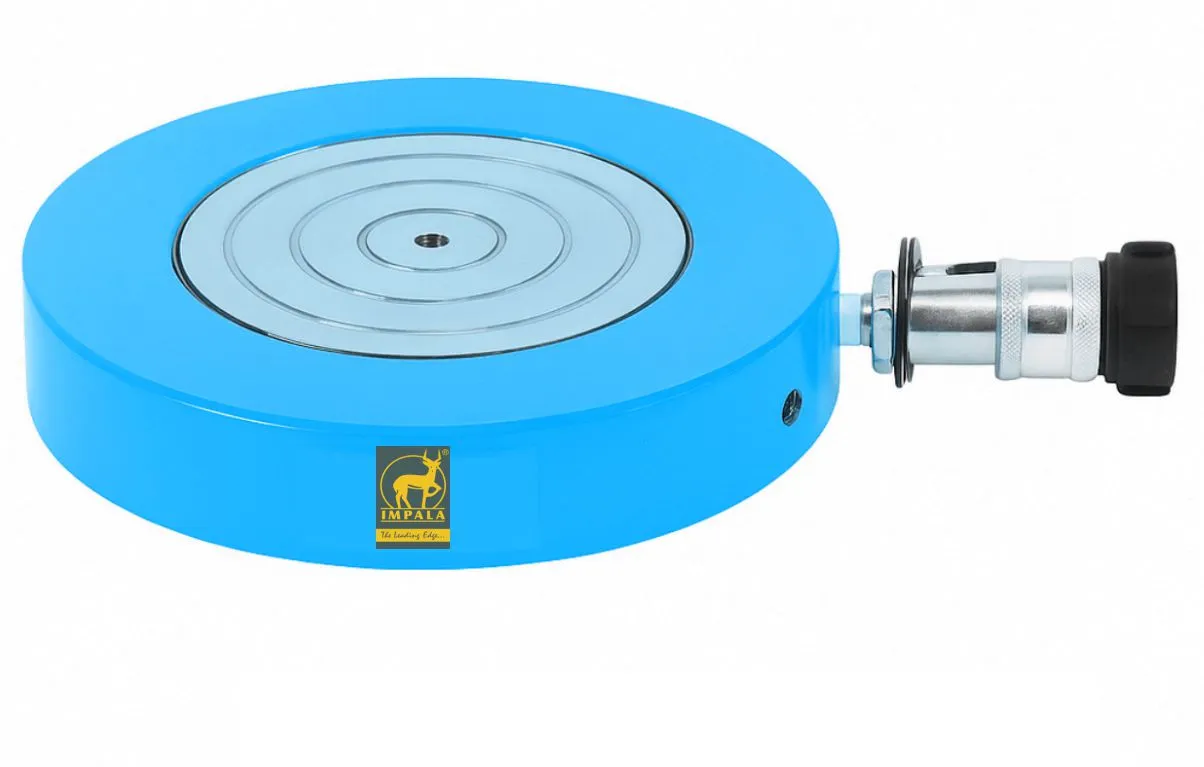

The IMUFC Series features hydraulic cylinders designed for heavy-duty lifting applications. These models include varying capacities from 35 tons to 100 tons, equipped with different stroke lengths and oil capacities to cater to industrial needs.
| Model No. | Cylinder Capacity (Ton) | Stroke (MM) | Effective Area (CM²) | Oil Capacity (CM³) | Closed Height A (MM) | Extended Height A (MM) | Outside Dia. DXL (MM) | Inside Dia. DX (MM) | Piston Rod Dia. F (MM) | Bottom to Advance Port G (MM) | G.W. (Kg) | Ctn/Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IMUFC-3515 | 35 | 35.16 | 50.2 | 75 | 35 | 50 | 150 | 80 | 40 | 17.5 | 5 | – |
| IMUFC-7015 | 70 | 72.67 | 103.8 | 156 | 36 | 55 | 185 | 115 | 55 | 17.5 | 7.5 | – |
| IMUFC-10015 | 100 | 107.7 | 153.5 | 231 | 41 | 56 | 210 | 140 | 60 | 19 | 7.5 | – |
