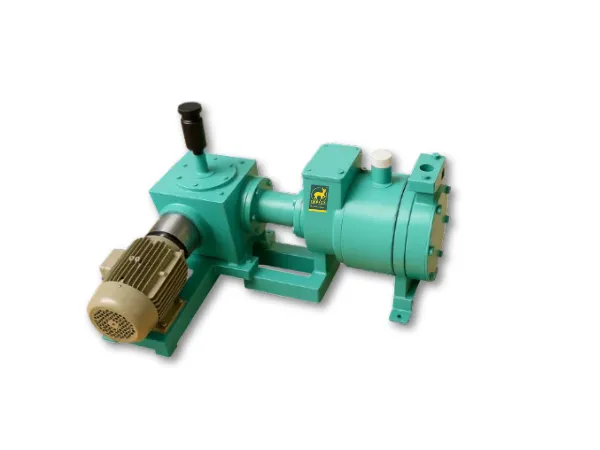

Mechanical Diaphgram / Hydraulic Diaphragm Pump

Mechanical Diaphgram / Hydraulic Diaphragm Pump

₹100.00

The glandless design ensures entirely leak-proof operation. The flow rate is linear to stroke length variation, and metering accuracy is almost independent of back pressure. The diaphragm is always balanced between the pressure exerted by the hydraulic oil and the liquid to be dosed, which contributes to longer diaphragm life. Automatic air bleeding from the hydraulic oil improves metering accuracy. An in-built pressure relief valve protects the pump from pressure exceeding the rated limit. For metering pumps used in hazardous areas, the liquid head can be positioned remotely from the drive side, with the head and drive connected via hydraulic oil in a flexible tube. Overall, the pump's performance conforms to API 675 standards.
Add to wishlistAdd to compare
ENQUIRY!
Category: Brand: ,

Additional information

brand

Impala

Material of Construction

  • Stainless 316, 304, 316L, 304L
  • Haste alloy
  • Alloy 20
  • Carbon Steels Gland
  • Sealing – PTFE
  • Any other special alloy
  • PP
  • PTFE
  • PVDF

Options

  • Rupture indication arrangement (RIA) is an additional facility available with these pumps. These pumps with RIA are provided with sandwich of two diaphragms. The rupture of any one of the diaphragm can be sensed by pressure sensing device.
  • Multiple Head with identical or different outputs for each head using single drive.
  • Jacketed Head for Heating or Cooling the liquid been pumped.
  • Automatic flow variation by receiving 4-20 mA signal from the process.



Model No LPH Pressure Spm Motor H.P
IMFL-11/50/MD 50 4 KG/CM2 200/8:1 0.5
IMFL-11/100/MD 100 4 KG/CM2 200/8:1 0.5
IMFL-11/450/MD 450 2 KG/CM2 200/8:1 0.5
IMFL-22/1000/MD 1000 2 KG/CM2 200/8:1 1.0
IMFL-11/50/HAD 50 7 KG/CM2 200/8:1 0.5
IMFL-11/100/HAD 100 7 KG/CM2 200/8:1 0.5
IMFL-11/200/HAD 200 7 KG/CM2 200/8:1 0.5
IMFL-22/500/HAD 500 7 KG/CM2 200/8:1 1.0
IMFL-22/700/HAD 700 7 KG/CM2 200/8:1 1.0
IMFL-33/1000/HAD 1000 7 KG/CM2 200/8:1 2.0
IMFL-33/2000/HAD 2000 5 KG/CM2 200/8:1 2.0
