Robotic Underbody Wash

Robotic Underbody Wash

₹100.00

Add to wishlistAdd to compare
ENQUIRY!
Categories: , Brand:

Description

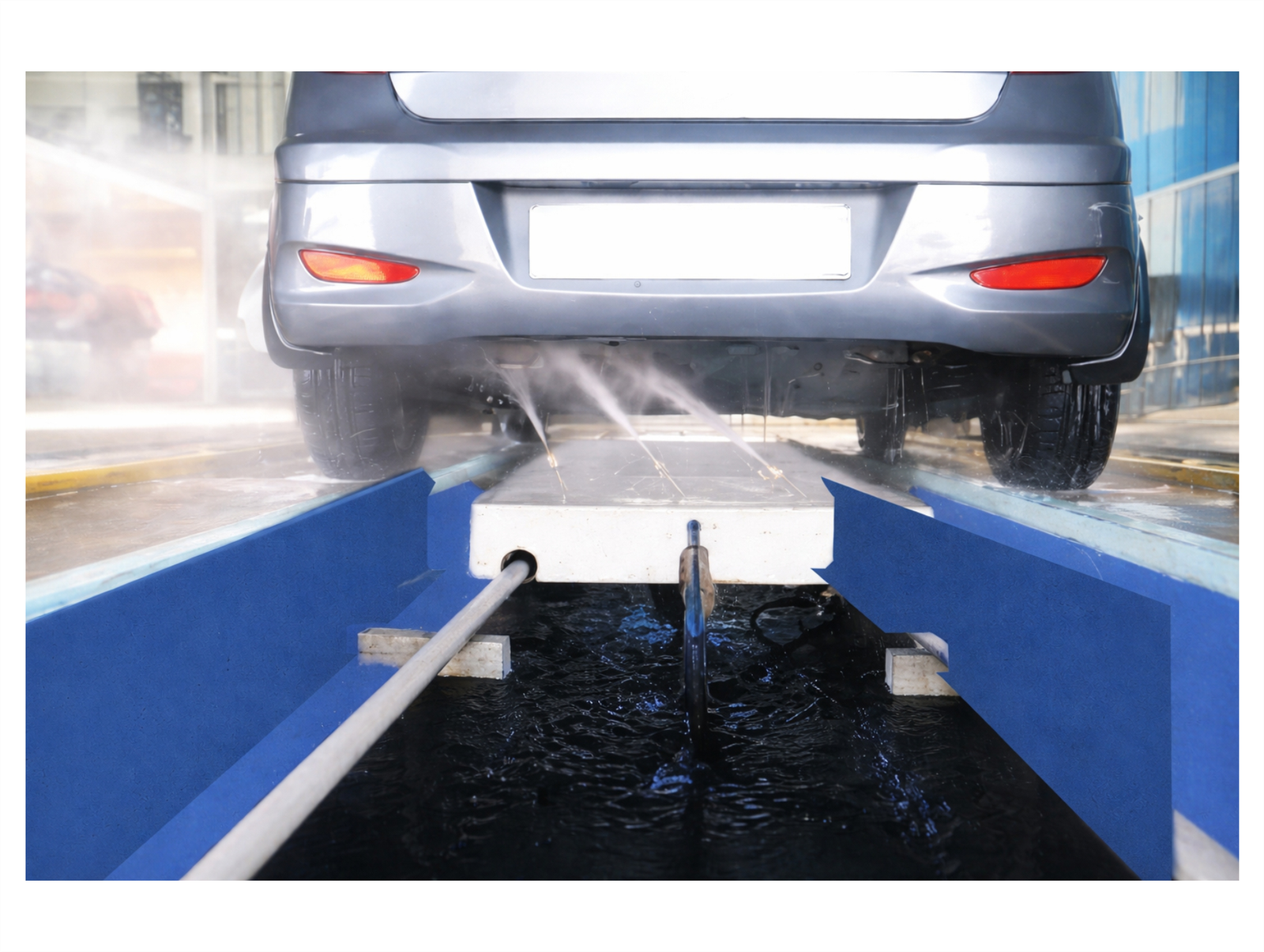

The Robotic Underbody Wash System is designed to provide thorough cleaning of the vehicle undercarriage using an automated moving gantry equipped with oscillating high-pressure nozzles. The robotic carriage travels beneath the vehicle, ensuring complete coverage of hard-to-reach areas while removing dirt, mud, oil, salt deposits, and other contaminants.

Additional information

brand

Impala

Features

  • Automated robotic underbody wash carriage with moving gantry system.
  • Oscillating high-pressure spray nozzles for complete undercarriage coverage.
  • Cleans the entire vehicle underbody in approximately one minute.
  • PLC-based control system with intelligent vehicle positioning sensors.
  • User-friendly remote operation panel.
  • Rugged steel construction with powder coating and hot-dip galvanization.
  • Corrosion-resistant design for extended service life.
  • Positive displacement high-pressure pump for powerful cleaning performance.
  • Low water consumption compared to conventional washing systems.
  • Integrated vehicle guide rail for accurate vehicle positioning.
  • Suitable for continuous operation in commercial and industrial environments.

Applications

The Robotic Underbody Wash System is ideal for:

  • Automobile service centers
  • Vehicle washing stations
  • Fleet maintenance facilities
  • Logistics and transportation companies
  • Mining and construction vehicles
  • Commercial vehicle depots
  • Bus and truck terminals
  • Government and municipal vehicle maintenance yards
  • Industrial plants with vehicle cleaning requirements
  • Defense and specialized vehicle cleaning facilities

Technical Specification

Parameter 9 Nozzle U.B. 3 Nozzle U.B.
High Pressure Triple Ceramic Plunger Pump 40 LPM 21 LPM
Pressure 100 Bar 150 Bar
Power Requirement 10 HP / 7.5 kW 7.5 HP / 5.5 kW
Power Consumption 0.3 Unit 0.2 Unit
Water Consumption Per Vehicle 35-40 Litres 16-21 Litres
Total Time for Undercarriage Wash 1 Minute 1 Minute
Maximum Washing Length 5.8 Mtr. 5.8 Mtr.
Maximum Washing Width 2.2 Mtr. 2.2 Mtr.
