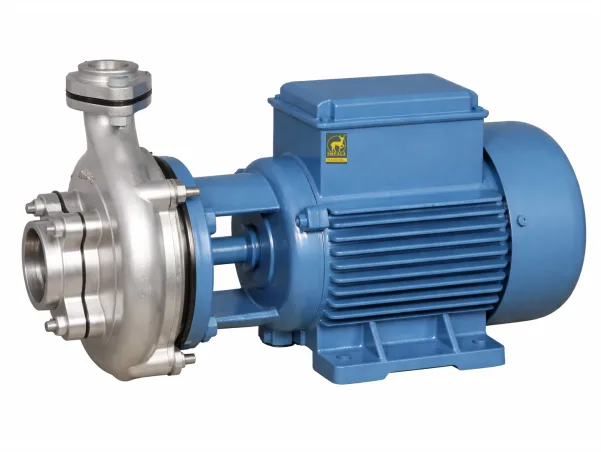

“SCF” Series Stainless Steel Centrifugal Pump (Casting)

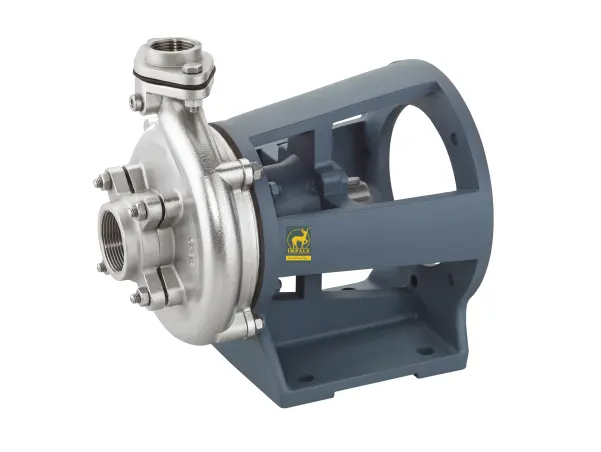

“SCF” Series Stainless Steel Centrifugal Pump (Casting) 03

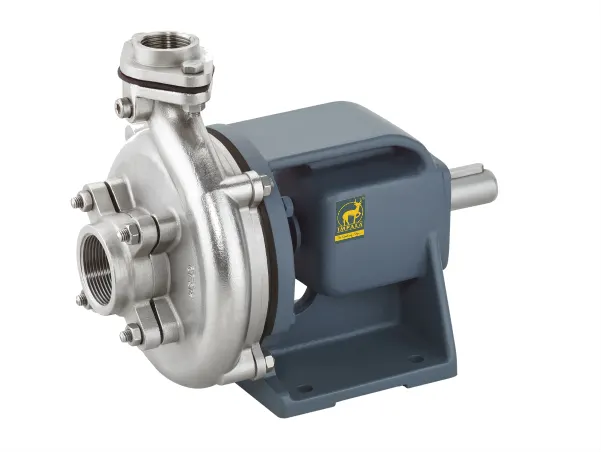

“SCF” Series Stainless Steel Centrifugal Pump (Casting) 02

“SCF” Series Stainless Steel Centrifugal Pump (Casting)

₹100.00

Buy now
The “SCF” Series Stainless Steel Centrifugal Pump is designed for **high efficiency** and **high discharge rates** at lower power consumption. With a **stainless steel 316 casing** and **impeller**, this pump offers excellent durability, making it ideal for industries where long-lasting, reliable performance is needed.
Add to wishlist
ENQUIRY!
Categories: , Brand:

Additional information

brand

Impala

Applications

  • High-efficiency liquid transfer with low power consumption
  • Ideal for pumping clean, non-corrosive liquids
  • Used in industries requiring efficient water pumping and circulation
  • Applicable for various industrial settings, including water treatment and chemical processing
  • Suitable for applications with suction lifts up to 8 meters

Features

  • Made with **SS 316** for excellent corrosion resistance
  • **Dynamically balanced impeller** for reduced noise and extended bearing life
  • Long lifespan due to **replaceable wearing parts**
  • **Simple construction** with easy maintenance
  • **Gland packing** replacement made easy with a standard **mechanical seal** (carbon-ceramic with SS spring)
  • **PTFE gland packing** available on request
  • Available in multiple **pipe sizes** for flexibility in installation
  • **Suction lift up to 8 meters** for handling deeper water sources
  • **Simple sealing arrangement** with an optional gland packing configuration
  • **SCFZ Series** is compatible with **B5 type IEC motors**
  • Available in **60Hz** frequency (on request)

Operating Range

  • Pressure: Up to 2.5 Kg/Cm²
  • Discharge: 100 LPM to 600 LPM
  • Pipe Size: 25 x 25 mm to 50 x 50 mm
  • Power Rating: 0.5 HP to 3 HP

Applications of SCF Series Pump

  • Water pumping in various industrial sectors
  • Chemical transfer and circulation systems
  • Water treatment plants requiring high-efficiency centrifugal pumping
  • Food processing and pharmaceutical sectors

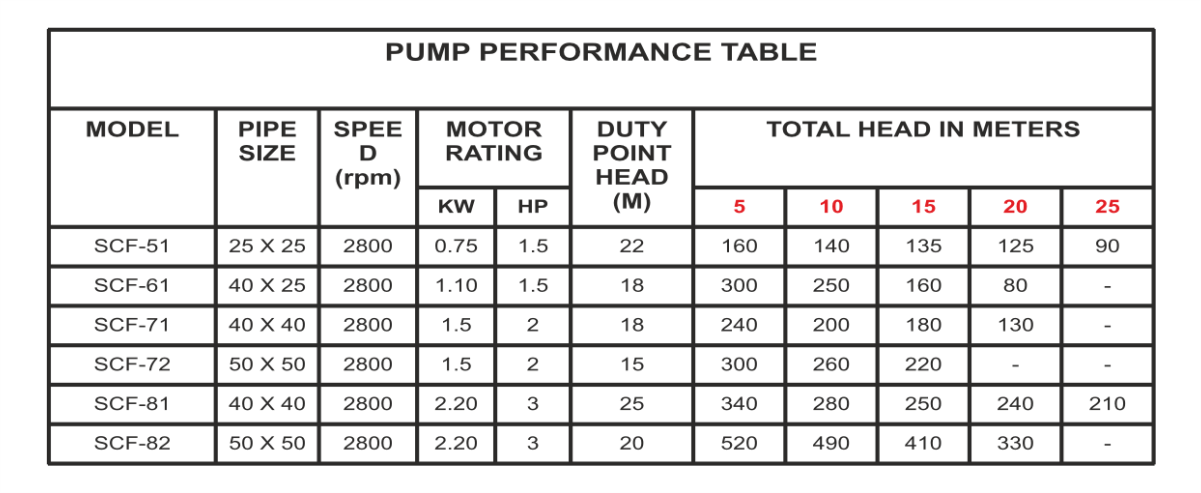

Performance Table

“SCF” Series Stainless Steel Centrifugal Pump (Casting)
