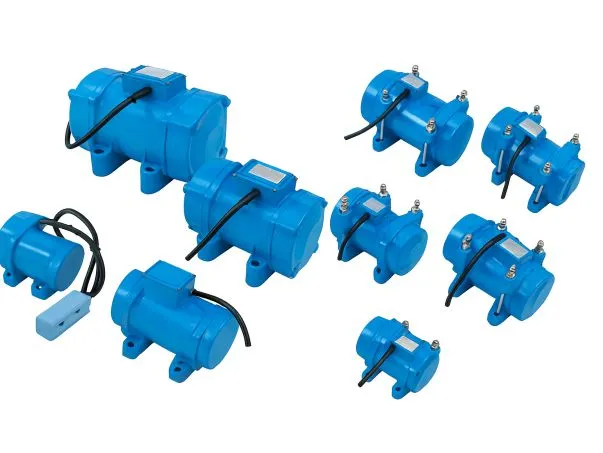

The IM Series Vibrators (0.5 HP to 3 HP, both 3-phase and 1-phase) are versatile and powerful concrete vibration tools designed for efficient compaction. Available in multiple motor sizes, these vibrators offer high force and consistent vibration frequencies, making them ideal for a wide range of construction and industrial applications. With aluminum motor bodies and various power outputs, they ensure durability and reliable performance.
| Parameter | IM 0.5/3 | IM 1/3 | IM 2/3 | IM 3/3 | IM 0.5/1 | IM 1/1 | IM 2/1 | IM 3/1 |
|---|---|---|---|---|---|---|---|---|
| Vibrator Motor | 0.5 HP 3ph | 1 HP 3ph | 2 HP 3ph | 3 HP 3ph | 0.5 HP 1ph | 1 HP 1ph | 2 HP 1ph | 3 HP 1ph |
| Input Volt | 415 | 415 | 415 | 415 | 220 | 220 | 220 | 220 |
| Current Drawn | 0.86 | 1.98 | 3.24 | 4.26 | 1.49 | 3.42 | 5.6 | 7.36 |
| Frequency | 50/3000 | 50/3000 | 50/3000 | 50/3000 | 50/3000 | 50/3000 | 50/3000 | 50/3000 |
| Force (kN) | 3.5 | 5 | 7 | 9 | 3.5 | 5 | 7 | 9 |
| Power (kW) | 0.37 | 0.75 | 1.5 | 2.2 | 0.37 | 0.75 | 1.5 | 2.2 |
| Motor Body | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Weight (NETT) | 6.5 kg | 14.5 kg | 24 kg | 28 kg | 6.5 kg | 14.5 kg | 24 kg | 28 kg |
| LxBxH (cm) | 28x16x16 | 31x22x21 | 38x24x22 | 38x24x22 | 23x16x11 | 31x22x12 | 31x24x22 | 38x24x22 |
