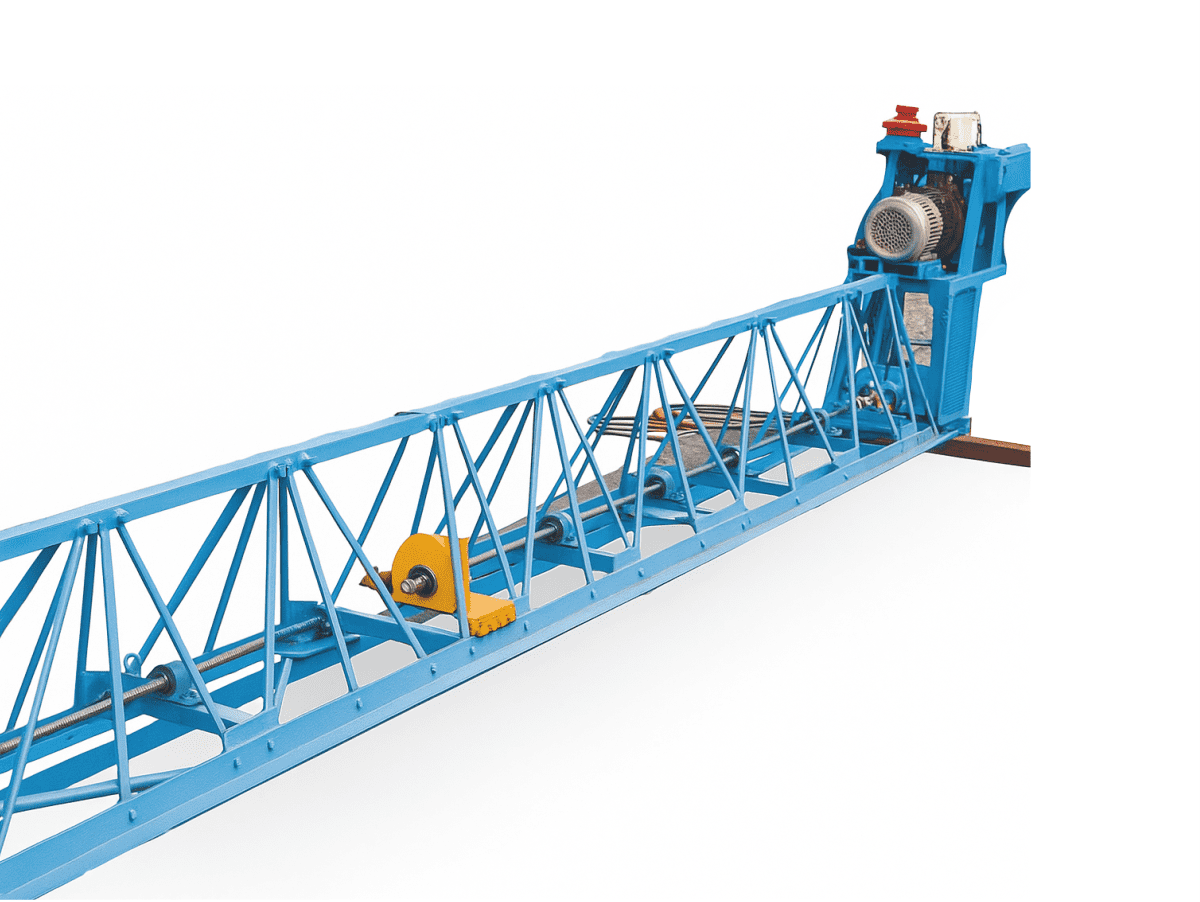

The IMTS/CG Series Vibratory Screed (IMTS/8/CG-3(2), IMTS/6/CG-5, IMTS/4/CG-3) is a powerful concrete leveling system designed for precision and durability. Equipped with a 3-phase motor (415V, 50Hz) and 5 HP output, it ensures efficient vibration and smooth surface finishing. With modular section options and a maximum screed length of 12 meters, it is ideal for large-scale flooring and construction projects.
| Parameter | IMTS/8/CG-3(2) | IMTS/6/CG-5 | IMTS/4/CG-3 |
|---|---|---|---|
| Motor | 3 Phase, 415V, 50Hz | 3 Phase, 415V, 50Hz | 3 Phase, GX160 |
| Power | 5 HP | 5 HP | 5 HP |
| 1 m Section | 1000 mm | 1000 mm | 1000 mm |
| 2 m Section | 2000 mm (2 Nos) | 2000 mm | — |
| 3 m Section | 3000 mm | 3000 mm | 3000 mm |
| Drive Unit | 325 mm | 325 mm | 325 mm |
| End Unit | 325 mm | 325 mm | 325 mm |
| Max. Length of Screed | 12 m | 12 m | 12 m |
| Weight – 1 m Section | 20 kg | 20 kg | 20 kg |
| Weight – 2 m Section | 30 kg (2 Nos) | 30 kg | — |
| Weight – 3 m Section | 40 kg | 40 kg | 40 kg |
| Rated Current | 4.6 A | 4.6 A | 4.6 A |
