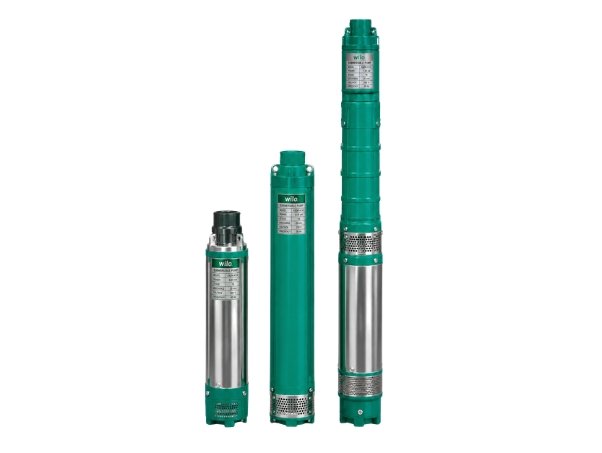

WBW 125 mm (5”) – Water Filled Borewell Submersible Pump Set

WBW 125 mm (5”) – Water Filled Borewell Submersible Pump Set

₹100.00

5” borewell submersible pump set designed for high discharge (up to 700 LPM) and moderate head (up to 15 m) applications in large domestic and industrial water systems.
Add to wishlistAdd to compare
ENQUIRY!
Categories: , Brand:

Description

The Wilo WBW 125 mm (5”) Borewell Submersible Pump Set is a high-capacity water-filled deep borewell pump designed for large-scale domestic, agricultural, and industrial water supply applications.

It offers very high discharge capacity up to 700 LPM, making it suitable for high-volume water transfer systems. Built with stainless steel motor body and SS 410 impeller, it ensures durability, corrosion resistance, and reliable long-term operation.

Additional information

brand

Impala

Features

  • 5” (125 mm) borewell submersible pump set
  • Water-filled motor for efficient cooling and long service life
  • Very high discharge capacity up to 700 LPM
  • Stainless steel motor body for corrosion resistance
  • SS 410 impeller for strength and durability
  • Wide voltage compatibility (single & three phase options)
  • Sand guard and wear ring protection system
  • Bearings provided at top, bottom, and middle for stability
  • Non-return valve design for reduced friction loss
  • Fully rewindable motor with PVC flat cable and earthing provision
  • Designed for continuous submerged operation
  • Resistant to corrosion and abrasion

Technical Specification

  • Type: Borewell Submersible Pump Set (Water Filled)
  • Size: 125 mm (5”)
  • Flow Rate: Up to 700 LPM
  • Head Range: Up to 15 m
  • Power Rating: Up to 3.7 kW (5 HP)
  • Starting Method: DOL
  • Rated Current: 10 A (415 V)
  • Materials of Construction:
    • Casing: Cast Iron
    • Impeller: SS 410
    • Motor Body: Stainless Steel
  • Speed: 2900 RPM
  • Operation: Continuous submerged duty

Applications

  • Domestic and community water supply systems
  • High-rise buildings, villas, and housing complexes
  • Farmhouses, gardens, and nurseries
  • Drip and sprinkler irrigation systems
  • Washing systems (garages, poultry, cattle farms)
  • Industrial water transfer applications
  • Large tank filling and distribution systems

Key Advantage

The WBW 125 mm (5”) series is best suited for:

  • High water volume requirements (up to 700 LPM)
  • Low to moderate head applications
  • Large domestic or industrial pumping systems
  • Reliable continuous operation with low maintenance needs
