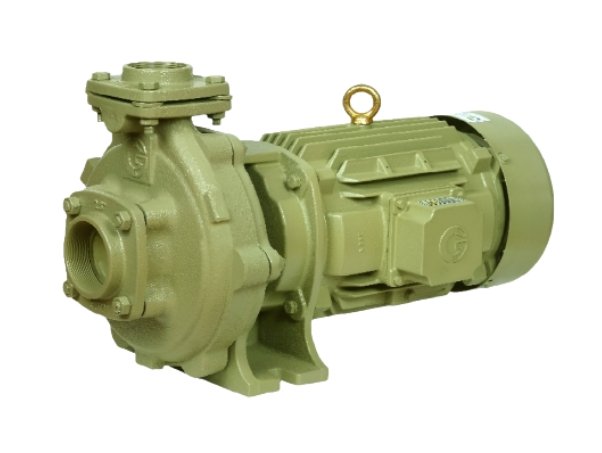

The Apex Series Centrifugal Monobloc Pumps are designed for high-efficiency water lifting in industrial, commercial, and domestic applications. Built with robust construction, these pumps are ideal for water supply in bungalows, high-rise buildings, small farms, hospitals, and irrigation systems. They are statically balanced for vibration-free operation and feature special mechanical seals for hot and cold-water applications.
| brand | Impala |
|---|
| Component | Specification |
|---|---|
| Winding | Copper |
| Stamping | High Grade Electrical Stamping |
| Motor Body | Cast Iron FG200 |
| Volute Casing | Cast Iron FG200 |
| End Cover | Cast Iron FG200 |
| Adaptor | Cast Iron FG200 |
| Flange | Cast Iron FG200 |
| Impeller | Cast Iron FG200 with Rust-Free CED Coating |
| Shaft | Carbon Steel |
| Sealing Type | Mechanical Seal |
| Fan Cover | Mild Steel |
| Model | HP | Pipe Size (mm) | Head (m) | Discharge (LPM) |
|---|---|---|---|---|
| CGXMB03K-38 | 3 | 50×40 | 8–20 | 340–900 |
| CGXMB03N-26 | 3 | 65×50 | 8–20 | 430–1200 |
| CGXMB03P-21 | 3 | 80×65 | 8–20 | 460–750 |
| CGXMB05N-37 | 5 | 65×50 | 8–20 | 460–690 |
| CGXMB05P-28 | 5 | 80×65 | 8–20 | 420–850 |
| CGXMB07P-36 | 7.5 | 80×65 | 8–20 | 350–1250 |
| CGXMB10P-40 | 10 | 80×65 | 8–20 | 200–1400 |
| CGXMB15S-36 | 15 | 100×100 | 8–20 | 1230–1850 |
| CGXMB05K-50 | 5 | 50×40 | 20–40 | 100–325 |
| CGXMB07K-56 | 7.5 | 50×40 | 20–40 | 200–500 |
| CGXMB20R-48 | 20 | 100×80 | 20–40 | 300–1600 |
