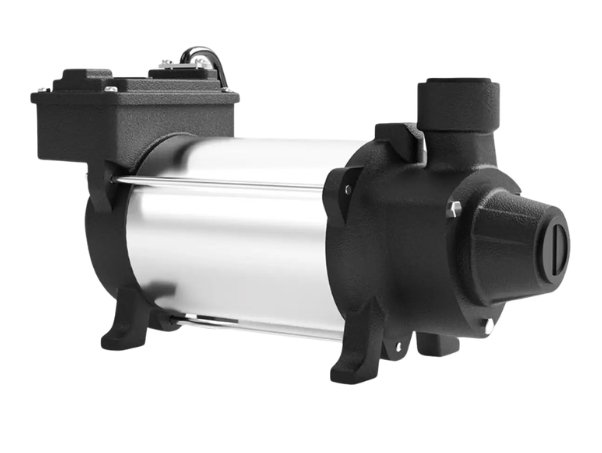

The CG StrongFLOW pump is a high-performance regenerative openwell submersible pump designed for domestic and commercial water lifting applications. It is ideal for booster systems, RO applications, hydroponic farming, and general clean water distribution. Its durable construction ensures long-lasting performance and easy DIY installation.
| brand | Impala |
|---|
| Component | Material |
|---|---|
| Pump Volute Casing | CED Coated Cast Iron (CI FG 200) |
| Impeller | Forged Brass |
| Motor Body | Stainless Steel |
| Pump Adaptor & End Cover | CED Coated Cast Iron (CI FG 200) |
| Bearing | Ball Bearing |
| Seal | Dual Seal (Mechanical + Oil) |
| Shaft | Stainless Steel |
| Winding Wire | Copper Winding |
| Hardware | Stainless Steel |
| Model | Power (kW/HP) | Pipe Size (mm) | Head in Meters | Discharge LPH |
|---|---|---|---|---|
| CGSFLOW05 | 0.37 / 0.5 | 25 x 25 | 6 | 3000 |
| 9 | 2600 | |||
| 12 | 2200 | |||
| 15 | 1900 | |||
| 18 | 1500 | |||
| 21 | 1100 | |||
| 24 | 800 | |||
| 26 | 550 | |||
| CGSFLOW10 | 0.75 / 1 | 25 x 25 | 6 | 4000 |
| 9 | 3500 | |||
| 12 | 3000 | |||
| 15 | 2600 | |||
| 18 | 2100 | |||
| 21 | 1700 | |||
| 24 | 1200 | |||
| 26 | 900 | |||
| 28 | 600 |
