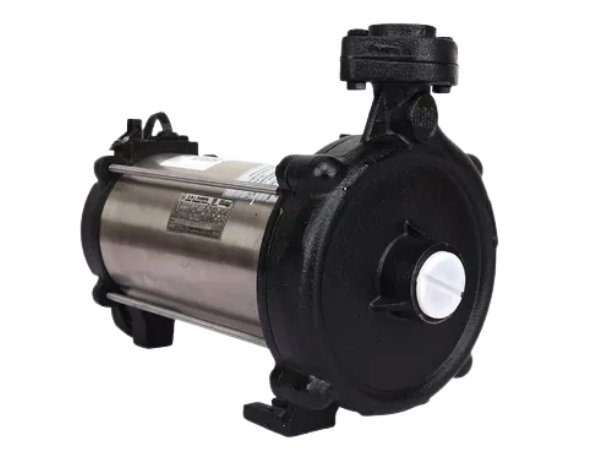

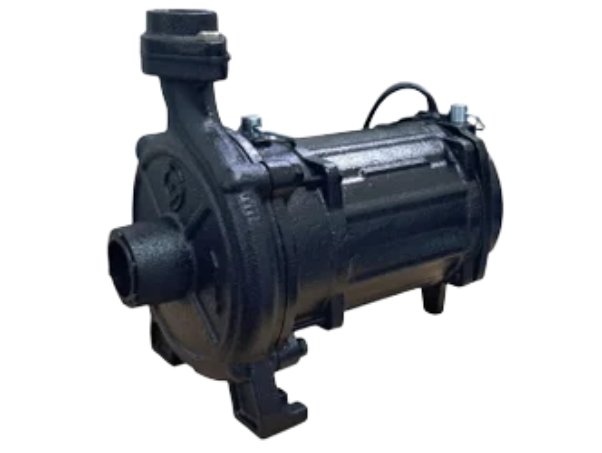

The CGDOW Domestic Open Well Pump is designed for both heavy-duty and regular duty applications. Ideal for water supply to overhead tanks in residential buildings, hotels, hospitals, farms, and other facilities, this pump combines durability with high-efficiency water lifting performance. Constructed with high-quality materials, it ensures long-lasting reliability and minimal maintenance.
| brand | Impala |
|---|
| Part / Feature | Material / Specification |
|---|---|
| Seal | Mechanical Seal & Oil Seal |
| Pad | Premium Thrust Pad |
| Carbon Bush | Heavy duty Carbon Bush |
| Adapter | Cast Iron FG200 |
| Impeller | Brass Insert Noryle Impeller |
| Fastener/Tie Rod | SS with M8 Size |
| Motor Body | Cast Iron FG200 / Aluminium for some models |
| Pump Casing & Adapter | Cast Iron FG200 |
| Shaft | SS 410 |
| Stamping | High Grade Electrical Stamping |
| Winding | Copper |
| Sr. No | Model | Frame | Power (kW) | Power (HP) | Pipe Size (mm) | Head in Meters | Discharge (L/H) |
|---|---|---|---|---|---|---|---|
| 1 | CGDOW180ZM32-C | 80 | 0.75 | 1 | 32×25 | 12–34 | 11500–300 |
| 2 | CGDOW180ZM34-C | 80 | 1.5 | 2 | 40×32 | 12–34 | 18000–500 |
| 3 | CGDOW2080ZM36-C | 80 | 2.0 | 3 | 50×40 | 12–35 | 20000–500 |
