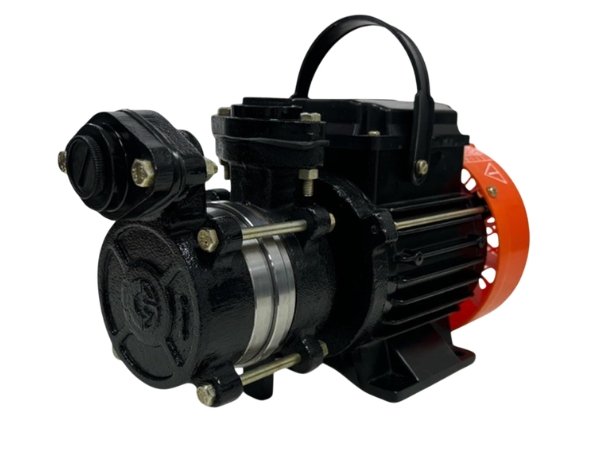

CGmaxGOLD series is a high-performance self-priming pump designed for efficient water supply applications. With superior suction lift, robust aluminium PDC motor body, and thermal overload protection, it ensures reliable performance for overhead tanks, residential buildings, hospitals, hotels, and industrial use.
| brand | Impala |
|---|
Water supply to overhead tanks of bungalows, residential buildings, flats, hotels, hospitals, nursing homes, etc.
| Component | Specification |
|---|---|
| Winding | Copper |
| Motor Body | Aluminium PDC |
| Pump Casing & Adapter | Cast Iron FG200 with CED Coating |
| Impeller | Forged Brass [LTB2] |
| Shaft | Stainless Steel |
| Suction & Delivery Chamber | Stainless Steel Investment Casting |
| Stamping | High Grade Electrical Stamping |
| Mechanical Seal | Carbon vs Ceramic |
| Supply | 1Ph, 180-240V, 50Hz |
| Speed | 2850 RPM |
| Sr. No | Model | Frame | Power (kW/HP) | Pipe Size (mm) | Head in Meters: 6 | 10 | 15 | 20 | 25 | 27 | 30 | 36 | 40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | CGDSS05MG | 71 | 0.37 / 0.5 | 15×15 | 1500 | 1400 | 1120 | 820 | 540 | 350 | |||
| 2 | CGDSS05MG-M32* | 71 | 0.37 / 0.5 | 15×15 | 1700 | 1500 | 1200 | 900 | 600 | 500 | 200 | ||
| 3 | CGDSS10MG | 71 | 0.75 / 1 | 25×25 | 2150 | 1950 | 1700 | 1450 | 1200 | 1080 | 900 | 360 | |
| 4 | CGDSS10MG-K38 | 71 | 0.75 / 1 | 25×25 | 2200 | 2000 | 1800 | 1500 | 1250 | 1100 | 900 | 350 | |
| 5 | CGDSS15MG | 71 | 1.1 / 1.5 | 25×25 | 2250 | 2040 | 1800 | 1540 | 1260 | 1200 | 970 | 500 | 90 |
