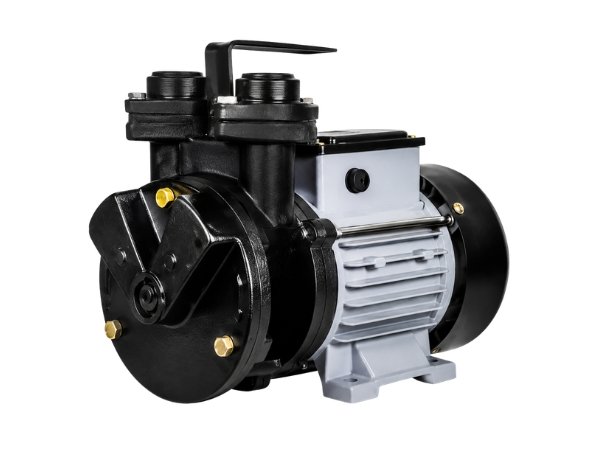

CGmaxVEE – High Speed Super Suction Self Priming Pump

₹100.00

High-speed super suction self-priming pump designed for efficient water lifting and residential/commercial water supply.
Add to wishlistAdd to compare
ENQUIRY!
Categories: , Brand:

Additional information

brand

Impala

Features and Specifications

  • All cast iron components are CED coated
  • Strong PDC motor body
  • Supply: 220V (6% to 15%), 1Ph, 50Hz
  • Excellent suction design up to 8 meters
  • Designed for high-efficiency water lifting
  • Fitted with thermal overload protection
  • ‘F’ class insulation

Applications

Clear water supply to overhead tanks of residential buildings, flats, hotels, hospitals, nursing homes, etc.

Construction Details

S.No Parts Material
1 Volute Casing CED Coated Cast Iron FG 200
2 Adaptor CED Coated Cast Iron FG 200
3 Motor Body High Grade Aluminium PDC (0.5hp) / Cast Iron Body (1.0hp)
4 Shaft Stainless Steel
5 End Cover Cast Iron FG 200
6 Flange CED Coated Cast Iron FG 200
7 Impeller Forged Brass Impeller [LTB2]
8 Fan Cover Plastic
9 Winding Copper Winding

Performance

Sr. No Model Frame Power kW Power HP Pipe size mm Head in Meters (6-50) Discharge in LPH
1 CGDSS05MV 71 0.37 0.5 25×25 6 – 50 2550–360 L/H
2 CGDSS05MV-33 71 0.37 0.5 25×25 6 – 50 2550–530 L/H
3 CGDSS05MVN** 71 0.37 0.5 25×25 6 – 50 2550–360 L/H
4 CGDSS10MV-CI 80 0.75 1 25×25 6 – 50 3000–250 L/H
