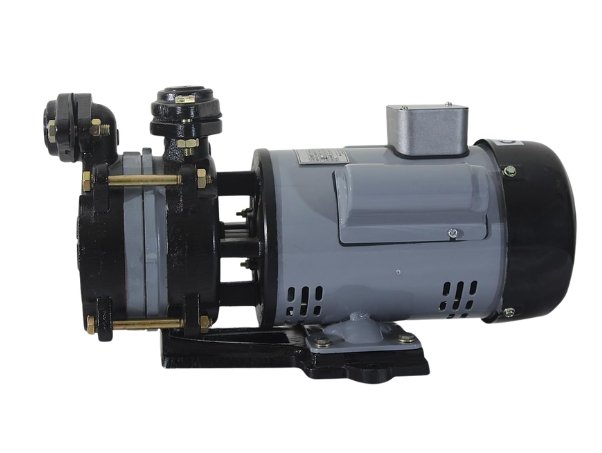

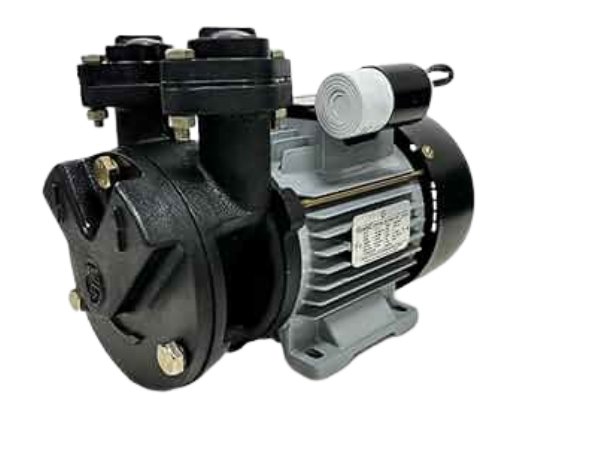

High-quality slow-speed self-priming pumps designed for high-rise buildings, small farms, hospitals, gardening, flats, and booster applications. Built with robust construction and reliable components to ensure long-lasting performance and efficient water pumping.
| brand | Impala |
|---|
| Component | Material |
|---|---|
| Motor Body | CRCA-MS / Cast Iron FG 200 |
| Winding | Copper |
| Pump Casing | CED Coated Cast Iron FG 200 |
| Adaptor | CED Coated Cast Iron FG 200 |
| Impeller | Stainless Steel / High Tensile Brass |
| Shaft | Stainless Steel |
| Stamping | High Grade Electrical Stamping |
| Sealing | Mechanical Seal |
| Speed | 1450 RPM |
| Sr. No | Model | Frame | Power (kW/HP) | Pipe Size (mm) | Head in Meters | Discharge in L/hr |
|---|---|---|---|---|---|---|
| 1 | CGDMB10DX | B56* | 0.75 / 1 | 25×25 | 6 – 42 | 3000 – 500 |
| 2 | CGDMB10DT | B56* | 0.75 / 1 | 25×25 | 6 – 42 | 3000 – 500 |
| 3 | CGTURB0051C | 90fr | 0.37 / 0.5 | 25×25 | 6 – 42 | 3300 – 500 |
| 4 | CGTURB0052C | 80fr | 0.37 / 0.5 | 25×25 | 6 – 42 | 3100 – 500 |
| 5 | CGTURB0102 | 90fr | 0.75 / 1 | 25×25 | 6 – 42 | 3800 – 800 |
| 6 | CGTURB0109O | 90fr | 0.75 / 1 | 25×25 | 6 – 42 | 3800 – 800 |
