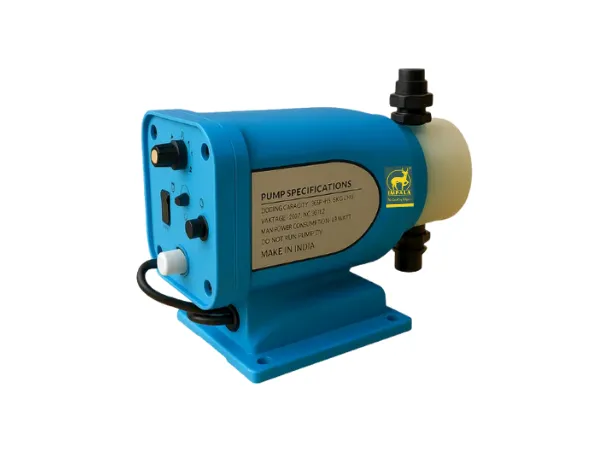

Electronic Dosing Pump

Electronic Dosing Pump

₹100.00

Add to wishlistAdd to compare
ENQUIRY!
Category: Brand:

Additional information

brand

Impala

Material of Construction

  • Stainless 316, 304, 316L, 304L
  • Haste alloy
  • Alloy 20
  • Carbon Steels Gland
  • Sealing – PTFE
  • Any other special alloy
  • PP
  • PTFE
  • PVDF

Options

  • Rupture indication arrangement (RIA) is an additional facility available with these pumps. These pumps with RIA are provided with sandwich of two diaphragms. The rupture of any one of the diaphragm can be sensed by pressure sensing device.
  • Multiple Head with identical or different outputs for each head using single drive.
  • Jacketed Head for Heating or Cooling the liquid been pumped.
  • Automatic flow variation by receiving 4-20 mA signal from the process.



Model No LPH Pressure Spm Motor H.P
IMFL-11/50/MD 50 4 KG/CM2 200/8:1 0.5
IMFL-11/100/MD 100 4 KG/CM2 200/8:1 0.5
IMFL-11/450/MD 450 2 KG/CM2 200/8:1 0.5
IMFL-22/1000/MD 1000 2 KG/CM2 200/8:1 1.0
IMFL-11/50/HAD 50 7 KG/CM2 200/8:1 0.5
IMFL-11/100/HAD 100 7 KG/CM2 200/8:1 0.5
IMFL-11/200/HAD 200 7 KG/CM2 200/8:1 0.5
IMFL-22/500/HAD 500 7 KG/CM2 200/8:1 1.0
IMFL-22/700/HAD 700 7 KG/CM2 200/8:1 1.0
IMFL-33/1000/HAD 1000 7 KG/CM2 200/8:1 2.0
IMFL-33/2000/HAD 2000 5 KG/CM2 200/8:1 2.0
