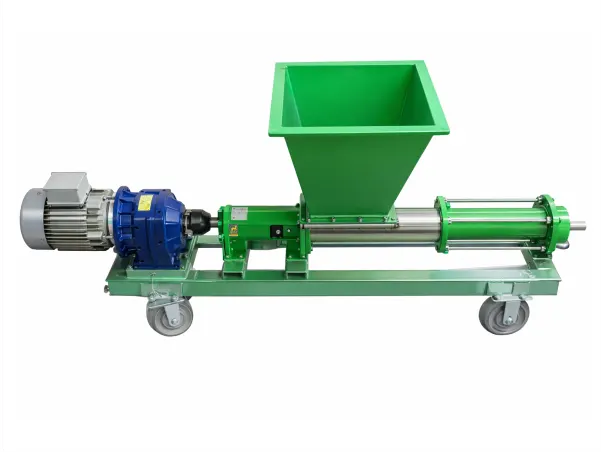

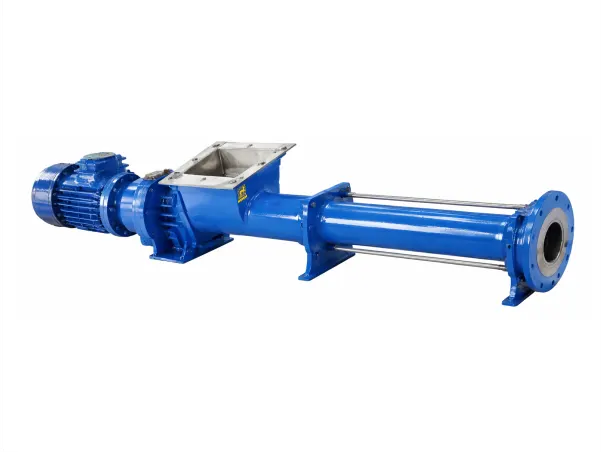

IM Screw Pump
₹100.00
The IM Screw Pump is designed with a metallic single helical rotary part (ROTOR) and a fixed double helical resilient polymer part (STATOR). As the rotor turns inside the stator, a complex progressive sealing line (CPL) is maintained. This configuration allows the pump to gently carry the media from the suction to the discharge end.
Applications
The pump is widely used for pumping various fluids, ensuring efficient flow handling, especially for viscous or shear-sensitive media. The rotor and stator design ensures continuous and smooth transfer without pulsations, ideal for applications such as:
- Oil and gas industry
- Food and beverage industry
- Cosmetics and pharmaceutical applications
- Water treatment and chemical processes
- Viscous liquid transfer
Drive Arrangements Specification
- Direct Drive: Electric motor, geared motor, gearbox
- Mechanical Speed Variator
- Eddy Current DC Drive
- Hydraulic, Pneumatic, Petrol & Diesel Engines
- For accurate and variable flow rates, AC Variable Frequency Drives can be used.
Specification
- Flow Rate: Up to 100 m³/hr
- Differential Pressure: 24 Bar (for more system pressures, contact factory assistance)
- Viscosity: Up to 100,000 cst
- Temperature: Up to 150°C
- Suction Lift: 8 MLC Max
