Additional information
| Brand | Impala |
|---|

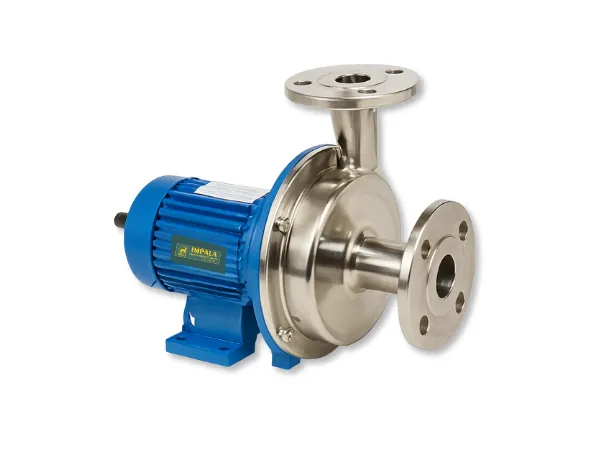

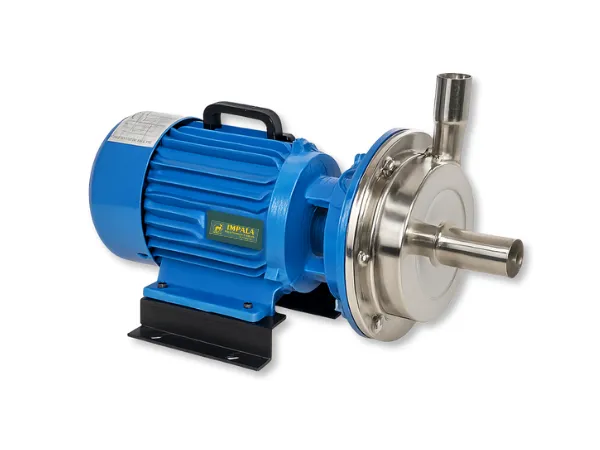

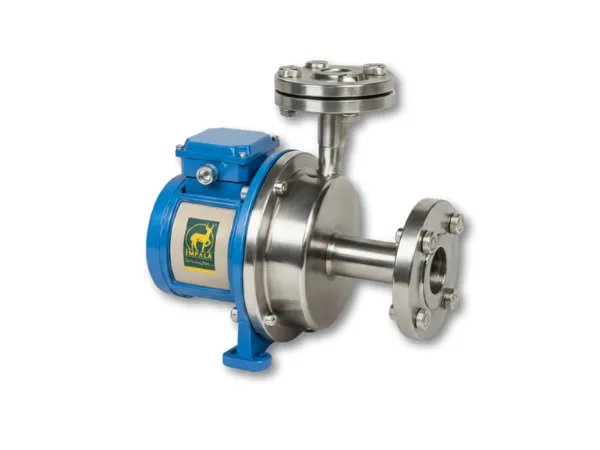

IMCF Series Stainless Steel Centrifugal Pump
₹100.00
IMPALA “IMCF” Series pumps are high-performance, compact centrifugal pumps designed for reliable fluid transfer across a wide range of industrial and commercial applications. Built for durability and efficiency, the IMCF Series offers robust construction, smooth operation, and minimal maintenance. Ideal for handling clear or slightly contaminated liquids, these pumps are suitable for industries like chemical processing, water treatment, HVAC, and general utility services.

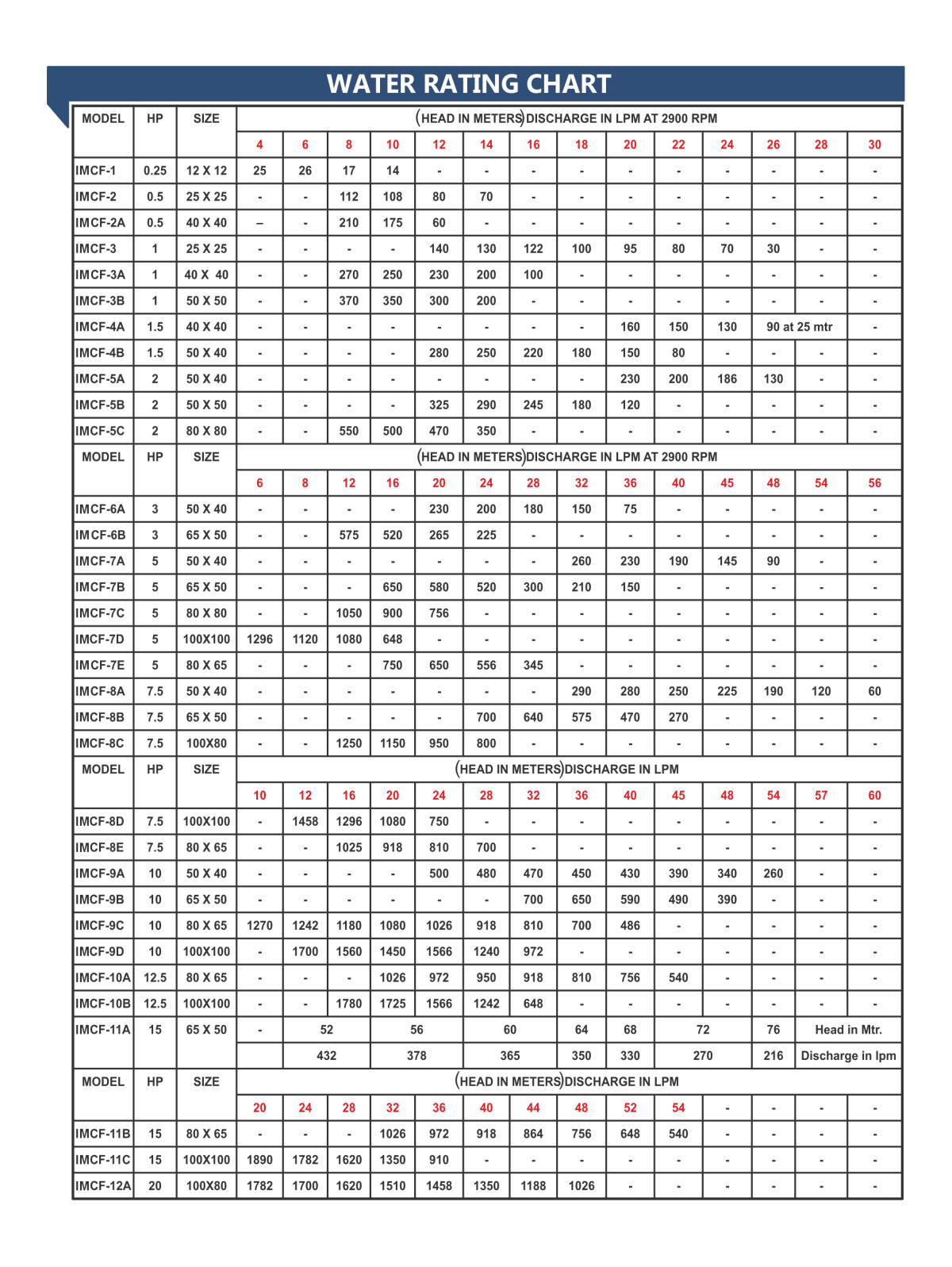

Range
| Motor Power | 0.25 HP – 30 HP |
| Head | 4 m – 80 m |
| Capacity | 4 LPM – 2000 LPM |
Application
- Milk, Cream, Butter Milk, Condensed Milk
- Fruit Juice, Beer, Wine, Sugar Syrup
- Vitamin Solutions, Sugar & Confectionery
- RO Water, DM Water, Pure Water, Water for Injection (WFI)
- Vegetable Oil, Mineral Oil, Lubricating Oil
- Pharmaceutical Formulations, Syrup
- Alkaline Solutions, Alcoholic Drinks
- Acids, Fine Chemicals
- Bottling Plants, Soft Drinks, Distillery
- Food Processing / Liquid Food Stuffs
- Colour Dyes and Pigments, Paints
- Descaling Applications, Paper & Cement Industries
- Water Treatment Plants
- Detergents, Soaps, Paste & Shampoo
- Textile Sizing, Dyeing & Finishing Systems
- Natural Cellulose Fiber / Synthetic Fiber Systems
- Hot & Cold Water Pumping
Features
- All pumps made from rolled stainless steel, offering superior mechanical properties compared to cast material.
- Pore-free, non-pitting and non-adhering smoother surface, resulting in lower friction losses and reduced service corrosion.
- Super-finished surface prevents ingress or emission of germs or impurities — ideal for sterile/hygienic applications.
- Can handle liquids with viscosities up to 1500 centipoises.
- Highly energy efficient and requires lesser NPSH to operate without cavitation.
- Operates under vacuum conditions up to 720 mm of Hg, suitable for vacuum evaporators.
- Available with closed or semi-open impellers.
- Fitted with high-quality elastomers for resistance to high temperatures and chemicals.
- Minimal working/rotating parts.
- Safe and quiet operational levels.
- Gentle product handling with lower maintenance and downtime costs.
- Dynamic seal face combinations as per customer requirement (single seal / double seal / seal with external cooling).
- Compatible with standard motor, flange type, foot-cum-flange type motor, or engine.

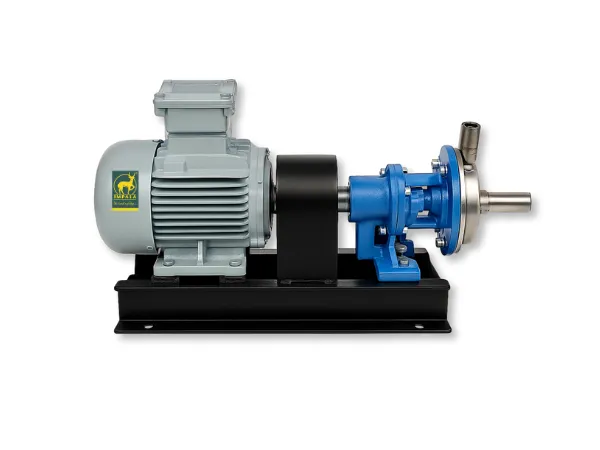

- Available as monoblock, bare pumps, or mounted on a trolley.
- Optionally available with flameproof motors.
- Various connection types: tri-clover joints, SMS, flanges, or threaded nipples/couplings.
- Adjustable legs available on request.
- Special bearings for hot water applications available on request.
