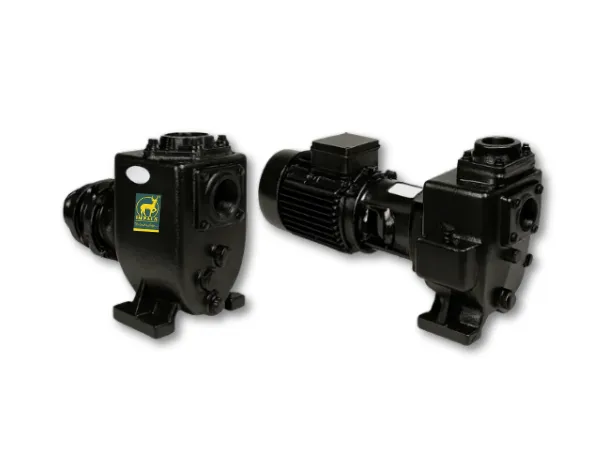

The “IMSEJ” Series Mud Pump
₹100.00
IMPALA “IMSEJ” Series Mud Pump is a robust and heavy-duty self-priming pump designed for handling muddy water, slurry, and other semi-solid fluids. Built for tough industrial and construction site applications, the IMSEJ Series offers excellent solids handling capability, high wear resistance, and reliable performance under harsh conditions. Ideal for dewatering, sewage bypass, and flood control, these pumps ensure efficient operation with minimal maintenance.
Add to wishlistAdd to compare
Features
- This economical self-priming mud pump is available from 0.5 HP to 5 HP.
- Offered in both monoblock and bare versions, with or without mechanical seal.
- Constructed with standard cast iron (SS impeller available on request).
- Compact design for space-saving and ease of installation.
Details
| PUMP MODEL | PIPE SIZE | R.P.M | SOLID HAND M.M | MOTOR RATING | HEAD IN METERS & DISCHARGE IN LITERS PER MINUTE | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | H.P | 06 M | 9 M | 11 M | 13 M | 15 M | 17 M | 19 M | 25 M | |||||
| IMSEJ-05 | 40 X 40 | 2800 | 5 | 0.37 | 0.50 | 150 | 84 | 60 | ||||||
| IMSEJ-0 | 40 X 40 | 2800 | 14 | 0.75 | 1.00 | 270 | 228 | 174 | 120 | 42 | ||||
| IMSEJ-1 | 50 X 50 | 2800 | 17 | 1.50 | 2.00 | 450 | 372 | 276 | 168 | 24 | ||||
| IMSEJ-2 | 50 X 50 | 2800 | 20 | 2.20 | 3.00 | 540 | 468 | 372 | 270 | 168 | 48 | |||
| IMSEJ-3L | 80 X 80 | 1440 | 15.5 | 3.70 | 5.00 | 1050 | 900 | 750 | 600 | 330 | 156 | |||
