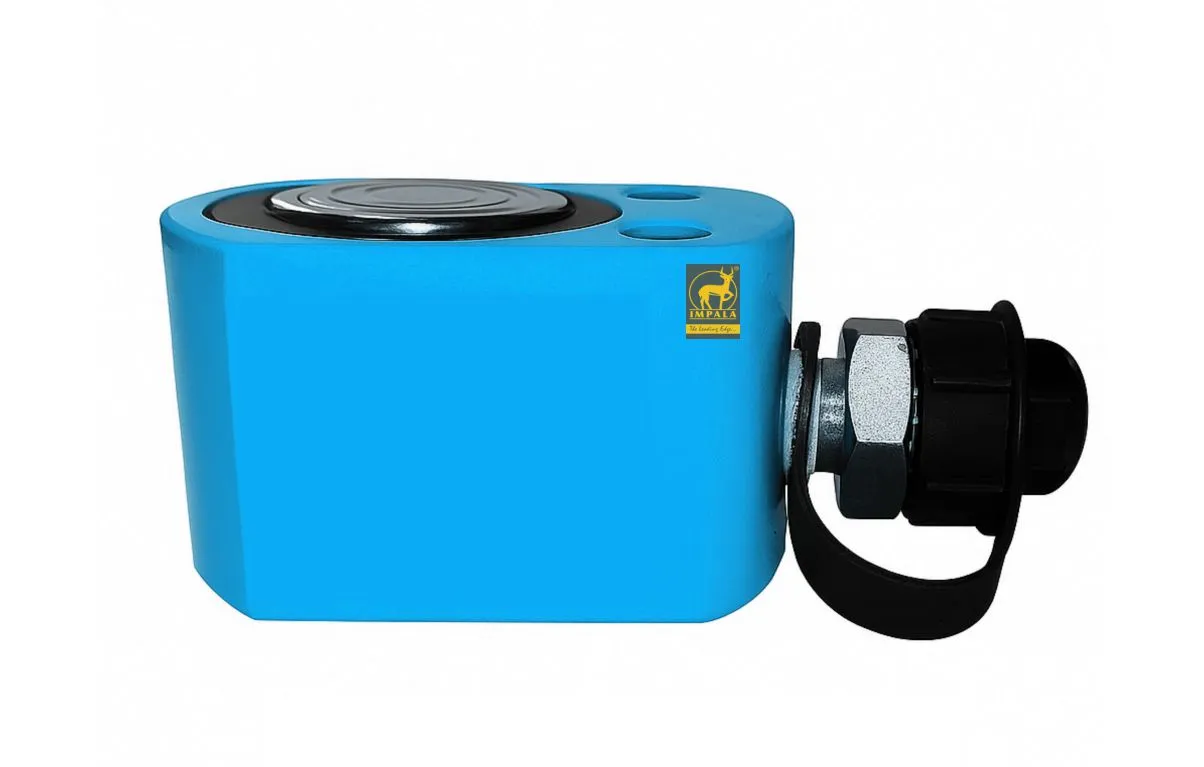

The IMFPY Series offers a range of hydraulic pumps with varying capacities, oil capacities, and lifting heights. Designed for heavy-duty industrial lifting applications, these pumps are available in different models to meet diverse operational needs.
| Model No. | Capacity (Ton) | Oil Capacity (CM³) | Closed Height A (MM) | Stroke (MM) | Extended Height B (MM) | Outside Dia ExF (MM) | Inside Dia C (MM) | Piston Rod Dia (MM) | G.W. (KG) | Ctn/Qty |
|---|---|---|---|---|---|---|---|---|---|---|
| IMFPY-10L | 10 | 49 | 110 | 25 | 74 | 83×60 | 45 | 30 | 1.6 | 4 |
| IMFPY-20L | 20 | 57 | 156 | 27 | 54 | 99×76 | 50 | 35 | 2.7 | 4 |
| IMFPY-30LL | 30 | 64 | 123 | 22 | 118 | 123×98 | 55 | 38 | 4 | 4 |
| IMFPY-50LL | 50 | 183 | 148 | 28 | 162 | 148×120 | 75 | 45 | 7.9 | 2 |
| IMFPY-100LL | 100 | 418 | 173 | 30 | 69 | 188×160 | 100 | 55 | 16.9 | 2 |
