Description

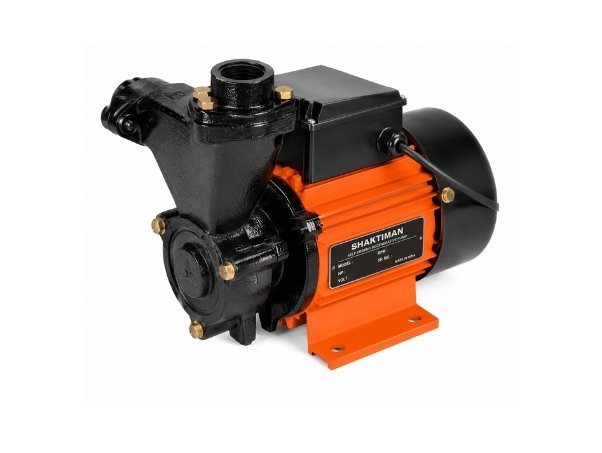

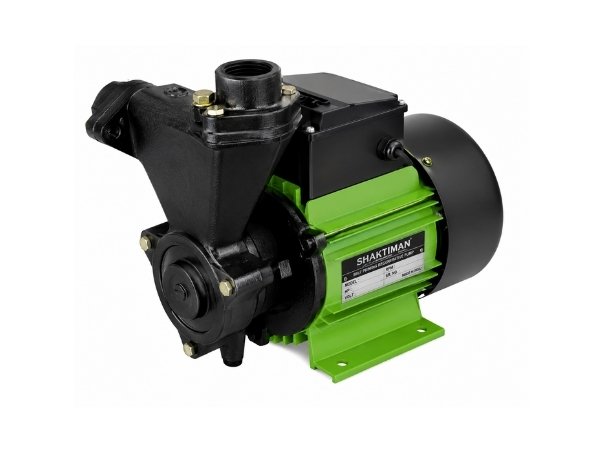

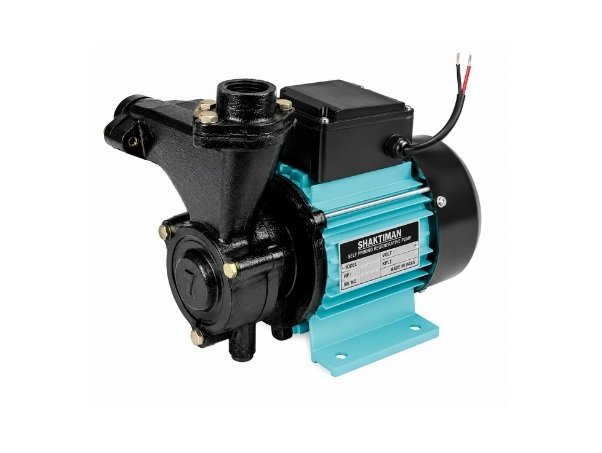

The Mini Range AARNA, ANAYA & RIAN Pumps are compact, lightweight, and energy-efficient water pumping solutions designed for domestic water supply, gardens, fountains, RO feed, car washing, and pressure boosting applications. Built with advanced electrical design, wide voltage compatibility, and high suction lift capability, these pumps deliver reliable performance with lower power consumption. Featuring CED coating, thermal overload protection, and low-noise shielded ball bearings, they ensure long service life and hassle-free operation.

Additional information

brand

Impala

Features

CED Coating Protection – Cathodic Electro Deposition coating provides superior corrosion resistance and longer product life.

Advanced Electrical Design – Lower current consumption for the same output compared to similar products.

Wide Voltage Range Operability – Designed to withstand voltage fluctuations from 180 to 260V, reducing motor burning risks.

Lightweight & Compact Design – Easy to carry, install, and operate for convenient everyday use.

High Suction Lift – Supports suction lift capacity of up to 7.5 meters.

Enhanced Safety Features – Covered electrical components ensure safer operation.

Dynamically Balanced Rotating Parts – Minimizes vibration and ensures smooth, stable performance.

TOP – Thermal Overload Protector – Protects the motor from overload and electrical faults.

Shielded Ball Bearing – Ensures low-noise operation with no external lubrication required.

Technical Specification

Specification AARNA-II / ANAYA-II / RIAN-II AARNA-I / ANAYA-I / RIAN-I
Head Range 6 to 21 Meters 6 to 30 Meters
Capacity Range 1980 to 680 LPH 2700 to 650 LPH
Power Rating 0.37 kW / 0.5 HP 0.75 kW / 1.0 HP
Phase Single Phase Single Phase
Voltage Range 180 to 260 Volts 180 to 260 Volts
Insulation B Class B Class

Material of Construction

Component Material
Impeller Brass
Delivery Casing Cast Iron
Motor Body Aluminium
Pump Shaft Carbon Steel
Cover NDE Aluminium
Seal Carbon vs Ceramic

Applications

  • Water Supply to Overhead Tanks in Bungalows
  • Gardens & Fountains
  • Feed Water to RO Plants
  • Domestic Water Supply
  • Construction Sites
  • Car Washing Applications
  • Lawn Sprinkler Systems
