Description

The Mini Range Regenerative Pumps are compact, lightweight, and energy-efficient water pumping solutions designed for domestic water supply, pressure boosting, gardens, fountains, RO feed, and light commercial applications. Featuring high suction lift capability, CED coating protection, thermal overload protection, and portable design, these pumps ensure reliable water delivery, quiet operation, and long service life. Ideal for homes and small-scale water transfer needs, the Mini Range combines convenience with performance.

Additional information

brand

Impala

Features

High Suction Lift – Supports suction lift up to 7.5 meters, enabling efficient water pumping at high volumes.

CED Coating Protection – Cathodic Electro Deposition coating provides superior corrosion resistance and longer product life.

TOP – Thermal Overload Protector – Protects the motor from overloading and safeguards against electrical faults.

Portable Handle Design – Convenient carrying handle ensures easy portability and user-friendly operation.

Easy Maintainable Design – Better interchangeability of components simplifies servicing and maintenance.

Shielded Ball Bearing – Low-noise operation with no external lubrication required throughout the pump life cycle.

High Efficiency & Energy Saving Design – Optimized engineering delivers lower energy consumption and cost savings.

Dynamically Balanced Rotating Parts – Minimizes vibration and ensures smooth and stable operation.

Technical Specification

Specification Details
Pump Type Regenerative Pumps
Head Range Up to 58 Meters
Discharge Range Up to 4800 LPH
Power Rating Up to 0.37 to 1.1 kW (0.5 to 1.5 HP)
Voltage Range 180 to 240 Volts (For CHHOTTU) / 180 to 260 Volts (For Ultra Series, MINI 30C, 40C & 50C)

Mini Range Models

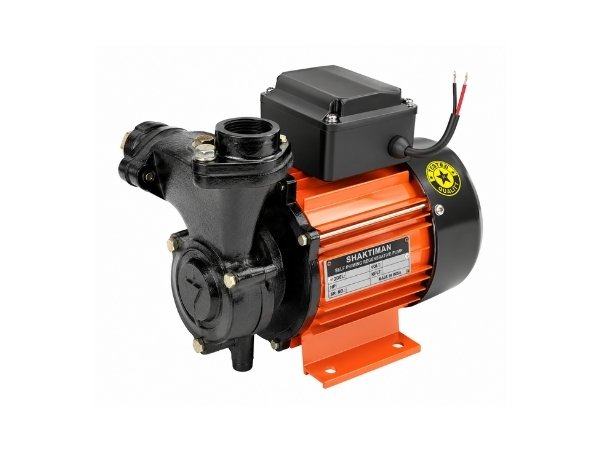

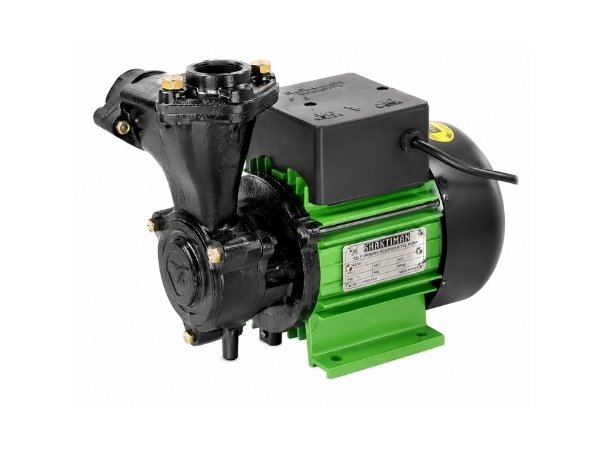

  • CHHOTTU

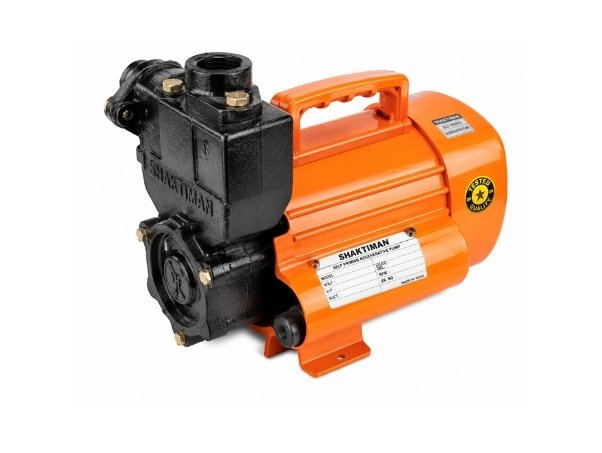

  • MINI 30C

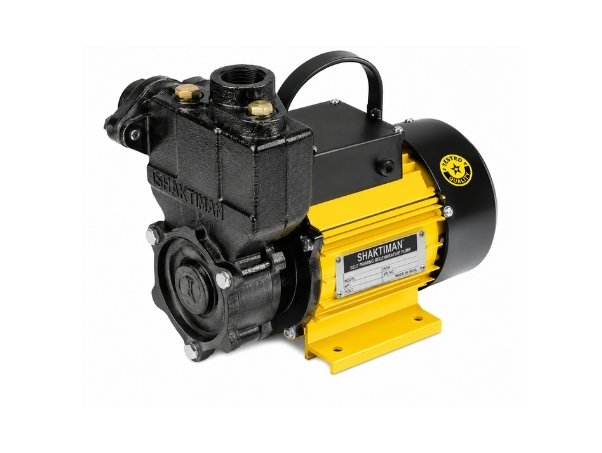

  • MINI 40C

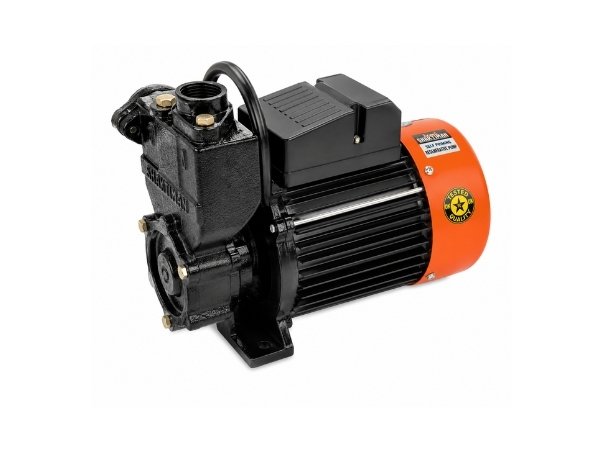

  • MINI 50C
  • JALRAAJ ULTRA

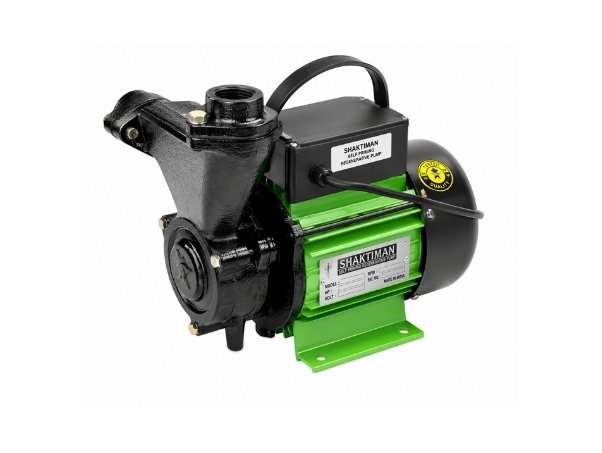

  • CHHOTU STAR ULTRA

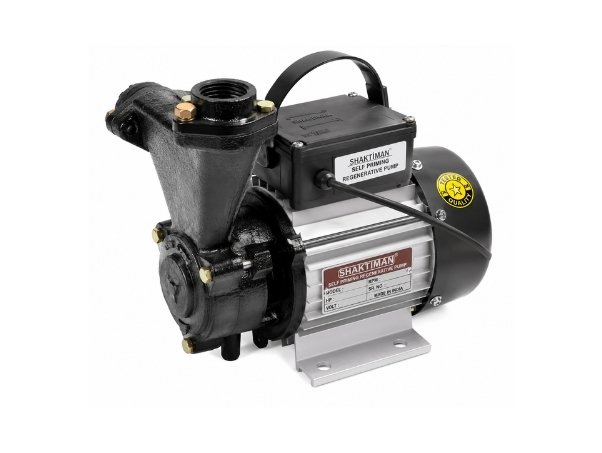

  • JALRAAJ – 1 ULTRA

Applications

  • Water Supply to Overhead Tanks in Bungalows
  • Gardens & Fountains
  • Feed Water to RO Plants
  • Domestic Water Supply
  • Construction Sites
  • Home Pressure Boosting
  • Car Washing Applications
  • Lawn Sprinkler Systems

Sold & Supplied by NIPA – Trusted Supplier of Kirloskar Brand Products.
