| brand | Impala |
|---|

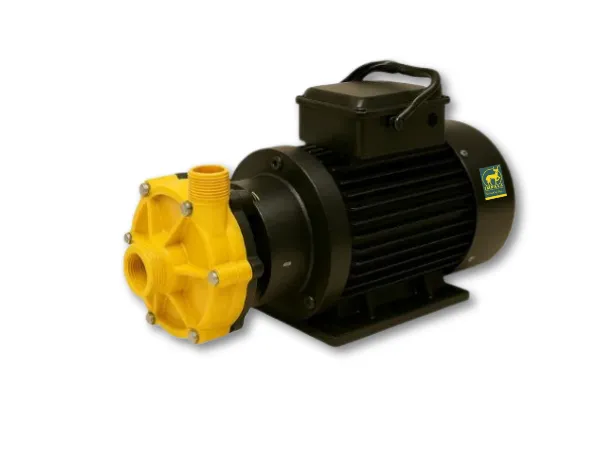

Poly Propylene Magnetic Pumps
₹100.00
Series RMD: Seal-less Magnetic Drive Pumps are available in PP and PVDF construction. These pumps are 100% leak-proof magnetic drive pumps. They operate without a shaft seal, and the impeller is rotated using a magnetic drive system. High-power permanent rare earth magnets are used in the magnetic drive arrangement, which provides high mechanical efficiency with zero slippage.
These pumps are completely leak-proof and are ideally suited for handling corrosive chemicals, toxic and fuming liquids, acids, electroplating chemicals, dyes, solvents, petrol, kerosene, pharmaceutical and food syrups, and more.
All RMD Magnetic Drive Pumps are available in monoblock type only, equipped with standard TEFC motors and flameproof motors.
Add to wishlistAdd to compare
Features
- 100% Leak Proof/seal less Pump.
- Zero Leakage Corrosion Resistance.
- User Friendly & Energy Saving.
- Easy Maintenance & standard Spares.
- Simple Reliable and Sturdy Monoblock.
- Magnetic Drive Ensures 100% Leak Proof.
- No Shaft Seal To Wear Or Replace.
- Friction Free Operation For Reduced Power Consumption.
- Easy To Maintain Simple Centrifugal Open Impeller.
- Design Long Life, Reliable And Trouble Free operation.
Industry & Application
- Chemical Industries
- Pharmaceutical Industries
- Textile Processing & Dyeing
- Electroplating Industries
- Agitation & De-scaling of Refrigeration
- Water Processors
Range
- Capacity from 10 LPM up to 750 LPM
- Head up to 40 meters
- Material of Construction: PP, SS-316 & PVDF
- Special Pumps for high temperature up to 150°C
Details
| Pump Model | Suction X Delivery Size | HP | Phase | Max. Capacity (LPM) | Max. Head (Mtrs) |
|---|---|---|---|---|---|
| RMD 15 | 14 x 14 mm Nozzle | 0.12 | Single | 15 | 2.5 |
| RMD 30 | 18 x 18 mm Nozzle | 0.16 | Single | 30 | 4 |
| RMD 50 | 20 x 20 mm Nozzle 1/2″ x 1/2″ BSP |
0.25 | Single/Three | 50 | 5 |
| RMD 85 | 26 x 26 mm Nozzle 1″ x 1″ BSP |
0.5 | Single/Three | 85 | 9 |
| RMD 125 | 26 x 26 mm Nozzle 1″ x 1″ BSP |
0.75 | Single/Three | 125 | 12 |
| RMD 170 | 1″ x 1″ BSP | 1 | Single/Three | 170 | 14 |
| RMD 300 | 1 1/2” x 1 1/4” BSP/Flanged | 1.5 | Three | 280 | 20 |
| RMD 400 | 2” x 1 1/2” Flanged | 2 | Three | 400 | 24 |
| RMD 500 | 2” x 1 1/2” Flanged | 3 | Three | 500 | 30 |
| RMD 600 | 2 1/2” x 2” Flanged | 5 | Three | 620 | 34 |
