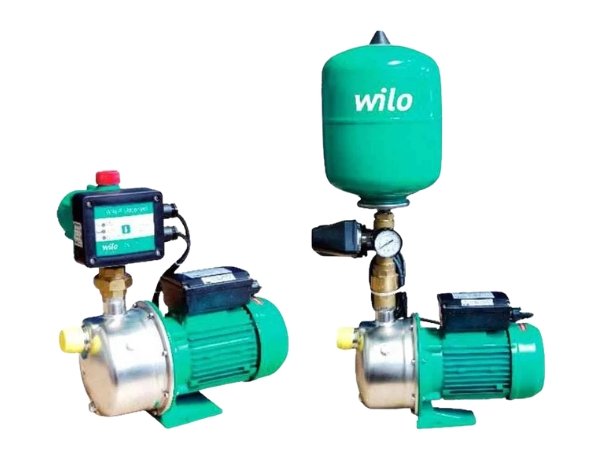

The Wilo FWJ / HWJ Single Pump Booster is a high-performance water transfer and pressure boosting system equipped with a stainless steel (SS 304) pump body and impeller for enhanced durability and corrosion resistance. Designed for bungalows, farmhouses, apartments, and hotels, this booster pump delivers efficient, silent, and reliable water transfer with automatic operation compatibility.
| brand | Impala |
|---|
✔ SS 304 Pump Body & Impeller – Stainless steel construction ensures durability and corrosion resistance.
✔ Automatic Operation Compatible – Available with hydro pneumatic tank / electronic control for automatic functionality.
✔ Highly Efficient Motor – Performs efficiently even under wide voltage fluctuations.
✔ Anti-Rust Material – Designed for longer life and reliable performance.
✔ Silent Operation – Low-noise running suitable for residential and hospitality applications.
✔ Easy to Carry, Install & Operate – Compact and user-friendly design.
✔ Dry Run Protection – Helps protect the motor during low-water conditions.
| Specification | Details |
|---|---|
| Flow Rate | Up to 78 LPM |
| Head | Up to 44 m |
| Voltage | 1 Phase / 220V / 415V |
| Float Switch | Available |
| Model | Power | HP | Pipe Size (Suction/Delivery) | Flow Range | Head Range | Pressure Range |
|---|---|---|---|---|---|---|
| HWJ-201-EM-8 | 0.37 kW | 0.5 HP | 25 / 25 mm | 50–10 LPM | 12–26 m | 1.2–2.0 bar |
| HWJ-202-EM-24 | 0.60 kW | 0.9 HP | 25 / 25 mm | 72–5 LPM | 10–34 m | 1.2–2.5 bar |
| HWJ-203-EM-24 | 0.80 kW | 1 HP | 25 / 25 mm | 76–8 LPM | 10–38 m | 1.5–3.0 bar |
| HWJ-204-EM-24 | 1.10 kW | 1.5 HP | 25 / 25 mm | 78–10 LPM | 18–44 m | 1.5–4.0 bar |
| Model | Power | HP | Pipe Size (Suction/Delivery) | Flow Range | Head Range | Pressure Range |
|---|---|---|---|---|---|---|
| FWJ-202-EM-FC 2 | 0.60 kW | 0.9 HP | 25 / 25 mm | 72–5 LPM | 10–34 m | 1.2–2.5 bar |
| FWJ-203-EM-FC 2 | 0.80 kW | 1 HP | 25 / 25 mm | 76–8 LPM | 10–38 m | 1.5–4.0 bar |
