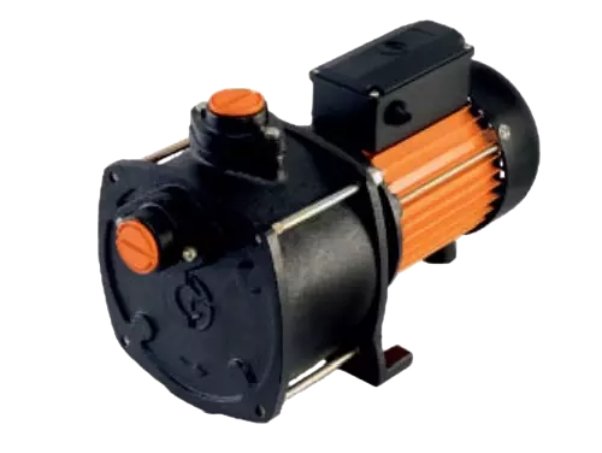

High-speed, self-priming jet pump designed for clean water applications. Ideal for supplying water to overhead tanks, apartments, gardens, hotels, and small farms. Constructed with durable materials for long-lasting performance and efficient water lifting.
| brand | Impala |
|---|
| Part | Material |
|---|---|
| Motor Body | Aluminium Extrusion |
| Pump Front Casing & Drum | CED Coated Cast Iron FG 200 |
| Adaptor | CED Coated Cast Iron FG 200 |
| ODE End Shield | PDC Aluminium |
| Impeller / Jet Unit / Diffuser | Glass filled Noryl |
| Shaft | Stainless Steel |
| Winding | Copper |
| Stamping | High Grade Electrical Steel |
| Sealing | Mechanical Seal |
| Speed | 2800 RPM |
| Model | Frame | kW | HP | Pipe Size (mm) | Head (m) | Discharge (L/H) |
|---|---|---|---|---|---|---|
| CGDSW050CN | 71 | 0.37 | 0.5 | 25 x 25 | 10 | 3100 |
| CGDSW050VN | 71 | 0.37 | 0.5 | 25 x 25 | 15 | 3000 |
| CGDSW100CN | 71 | 0.75 | 1 | 25 x 25 | 20 | 2400 |
| CGDSW100VN | 71 | 0.75 | 1 | 25 x 25 | 25 | 1600 |
| CGDSW100BCN* | 80 | 0.75 | 1 | 25 x 25 | 30 | 2800 |
| CGDSW100BCP* | 80 | 0.75 | 1 | 25 x 25 | 36 | 1500 |
