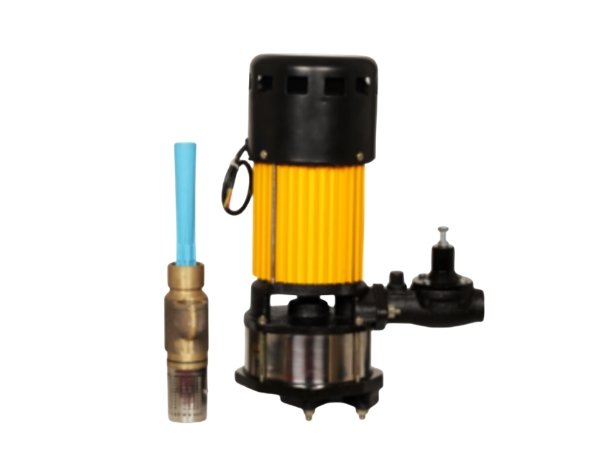

The CGCJ Centrifugal Jet Pump is designed for efficient water lifting with high suction head and ease of installation. Ideal for bore wells 4″ and above, this pump features durable construction, a twin-type design, and reliable performance for clear and cold water applications.
| brand | Impala |
|---|
| Part | Material |
|---|---|
| Impeller & Diffuser | Noryl |
| Shaft | Stainless Steel |
| Drum | Stainless Steel |
| Motor Body | Aluminium Extruded |
| End Cover / Adapter / Volute Casing | Cast Iron FG 200 with CED Coating |
| Control Valve | Cast Iron FG 200 with CED Coating |
| Fan Cover | Powder Coated MS Fan Cover |
| Fan | High Grade Engineering Plastic |
| Jet Assembly | Brass |
| Model | kW / HP | No. of Stage | Operating Pressure (Kg/cm²) | Pipe Connection (mm) Suction x Delivery | Discharge (LPH) at Head (M) |
|---|---|---|---|---|---|
| CGCJV1072 | 0.75 / 1.0 | 2 | 1.8 | 32 x 25 x 25 | 800: 30, 600: 35, 400: 40, 280: 45, 150: 50 |
