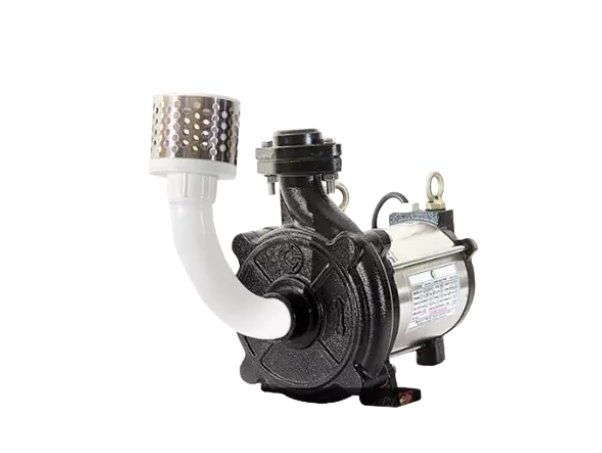

CGDOW – Domestic Open Well Pump

₹100.00

High-efficiency domestic open well pump with stainless steel motor and CED coated cast iron body, ideal for overhead tank supply in residential and commercial spaces.
Add to wishlistAdd to compare
ENQUIRY!
Categories: , Brand:

Description

The CGDOW Domestic Open Well Pump is designed for high-efficiency water lifting for overhead tanks in residential, commercial, and small industrial applications. Built with a durable stainless steel motor and CED coated cast iron components, this pump ensures longevity and reliable performance.

Additional information

brand

Impala

Features and Specifications

  • CED Coated Cast Iron Components
  • Stainless Steel Motor Body
  • High-Quality Oil Seal for Long Life
  • Easy Installation – No Foundation Required
  • Robust Construction for Reliable Operation

Material of Construction

Component Material
Volute Casing, Flanges Cast Iron FG 200
Motor Body & Shaft Stainless Steel
Adapter, End Cover Cast Iron FG 200
Impeller Noryl / Cast Iron (90 Frame)
Sealing Type Oil Seal
Stamping High Grade Electrical Stamping
Winding Copper
Supply 1Ph, 220V, 50Hz
Speed 2850 RPM

Applications

  • Overhead tank supply for bungalows, residential buildings, flats, and hotels
  • Lawn sprinklers, nurseries, and small farms
  • Clubs and other commercial setups

Performance

Sr. No Model Frame Power (kW) HP Pipe Size (mm) Head (M) & Discharge (L/hr)
1 CGDOW0571 71 0.37 0.5 25 x 25 6: 7800, 9: 6900, 12: 5700, 14: 3900, 16: 1200
2 CGDOW0571222 71 0.37 0.5 25 x 25 6: 8700, 9: 7800, 12: 6900, 14: 6000, 16: 4500, 18: 1200
3 CGDOW1010 71 0.75 1 25 x 25 6: 9000, 9: 8520, 12: 7800, 14: 6900, 16: 5880, 18: 4700
4 CGDOW1080 80 0.75 1 32 x 25 6: 10200, 9: 9500, 12: 9000, 14: 8000, 16: 6700, 18: 4800, 20: 2100
5 CGDOW1080N 90 0.75 1 32 x 25 6: 11520, 9: 10590, 12: 9600, 14: 8100, 16: 6300, 18: 2400
6 CGDOW1080Z28 90 0.75 1 32 x 25 6: 9200, 9: 8500, 12: 7700, 14: 6400, 16: 5800, 18: 710, 20: 750
7 CGDOW1080Z30 80 0.75 1 32 x 25 6: 10500, 9: 9600, 12: 8400, 14: 7200, 16: 5400, 18: 600, 20: 600
8 CGDOW1150B243 80 1 1.5 32 x 25 6: 11050, 9: 9800, 12: 9000, 14: 9600, 16: 9300, 18: 900, 20: 8400, 22: 7500, 24: 6800, 26: 5700, 28: 4500, 30: 2160
9 CGDOW1190 80 1 1.5 40 x 40 6: 21600, 9: 20400, 12: 19800, 14: 19500, 16: 19200, 18: 18000, 20: 15000, 22: 12000
10 CGDOW2000 90 1.5 2 50 x 50 6: 25800, 9: 25200, 12: 24000, 14: 22800, 16: 21600, 18: 20000, 20: 17200, 22: 14500, 24: 12200
11 CGDOW2190 90 1.5 2 50 x 40 6: 27000, 9: 26400, 12: 25800, 14: 24600, 16: 23400, 18: 21500, 20: 19500, 22: 16800, 24: 13200, 26: 9000 (29m)
