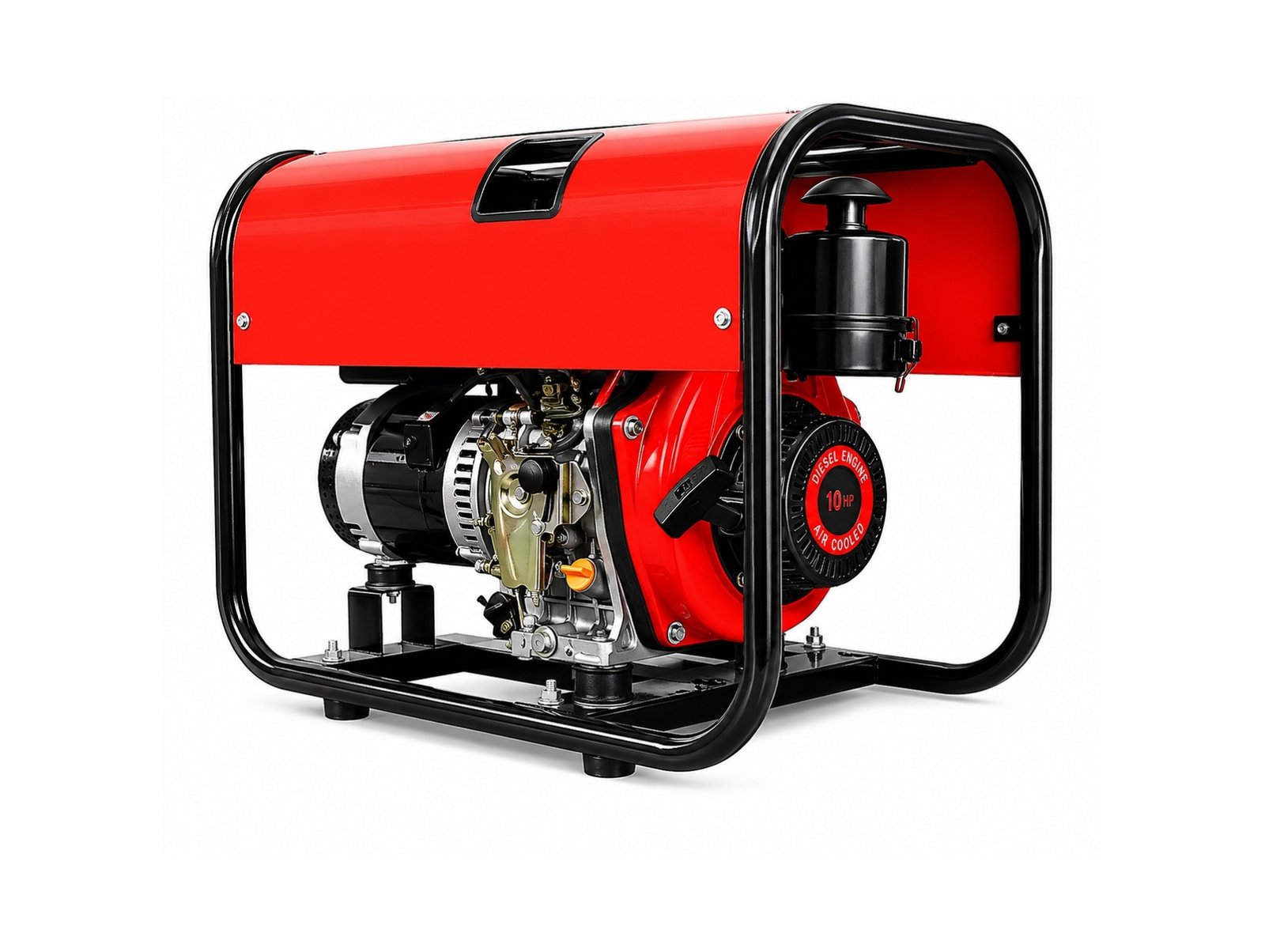

The SDG-1800 is a reliable diesel generator designed for consistent power supply. It integrates a robust single-cylinder vertical 4-stroke air-cooled diesel engine with a single-phase synchronous alternator, ensuring stable performance for residential, commercial, and light industrial applications.
| brand | Impala |
|---|
| Parameter | SDG-1800 |
|---|---|
| Type | Single Phase Synchronous Alternator |
| Frequency (Hz) | 50 |
| Max. Output (kW) | 1.8 |
| Rated Output (kW) | 1.6 |
| Voltage (V) | 220 |
| DC Out Put | 12V x 8.3A (Option) |
| Power Factor | 1 |
| Excitation System | Self-Excitation |
| Engine Type | Single Cylinder, Vertical, 4 Stroke, Air Cooled, D.I. Diesel Engine (F-210) |
| Displacement | 219 cc |
| Bore x Stroke (MM) | 70 x 57 |
| Max Output (RPM/HP) | 3000 / 3 |
| Starting System | Recoil Starter |
| Ignition System | TCI (Transistorized Pointless) |
| Lube Oil Capacity (L) | 0.75 |
| Oil Alert | / |
| Dimension (LxWxH mm) | 700 x 450 x 550 |
| Weight | 55 kg |
