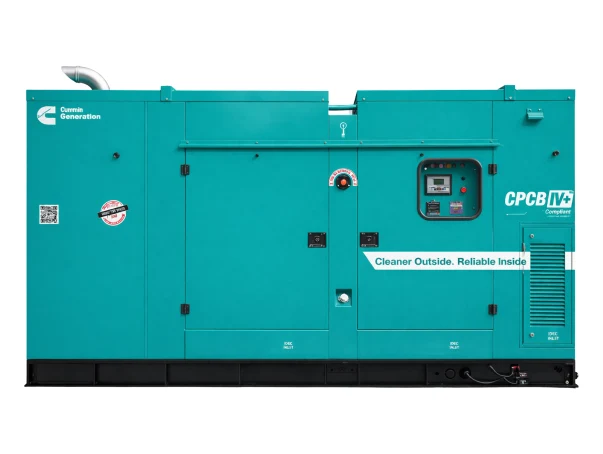

Diesel Generator Set – QSB6.7 Series

Diesel Generator Set – QSB6.7 Series (160–250 kVA) CPCB IV+

₹100.00

The QSB6.7 Series Diesel Generator Set delivers reliable and fuel-efficient power for industrial and commercial applications. Powered by Cummins® technology, it ensures superior performance, low emissions, and compliance with CPCB IV+ norms.

Add to wishlistAdd to compare
ENQUIRY!
Category: Brand:

Technical Data

Generator Set Specification
Technical Data CI 160D5P CI 180D5P CI 200D5P CI 225D5P CI 250D5P
Duty Prime Prime Prime Prime Prime
Power Rating (kVA / kWe) 160 / 128 180 / 144 200 / 160 225 / 180 250 / 200
No. of Phases 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase
Output Voltage & Frequency 415 V, 50 Hz 415 V, 50 Hz 415 V, 50 Hz 415 V, 50 Hz 415 V, 50 Hz
Power Factor 0.8 (lagging) 0.8 (lagging) 0.8 (lagging) 0.8 (lagging) 0.8 (lagging)
Current (A) 223 250 278 313 348
RPM 1500 1500 1500 1500 1500

Engine Features

  • Cummins® QSB6.7 series, 6-cylinder, inline, 4-stroke engine
  • Radiator cooled for consistent performance
  • Dry-type replaceable air filter with restriction indicator
  • Optimized turbocharger for better altitude operation
  • Common rail electronic fuel injection for efficiency
  • Spin-on fuel filter with water separator
  • Designed for 50°C ambient conditions
  • Full-flow lube oil filtration
  • Pre-filled lube oil and coolant
  • Electric starter with soft engagement
  • Battery charging alternator
  • 2 × 12V DC batteries

Control System – PowerStart™ PS0602

  • Microprocessor-based control system with LCD display
  • AMF (Auto Mains Failure) functionality
  • CAN (J1939) compatible
  • Sync compatible with external controllers
  • LED-backlit display with soft-touch interface
  • Remote start/stop operation
  • Audible & visual alerts

Metering

  • Oil pressure, engine temperature, battery voltage
  • Voltage (L-L & L-N), current, kVA, frequency
  • kWh, power factor, utility parameters

Protection

  • Low oil pressure
  • High/low coolant temperature
  • Battery voltage issues
  • Fail to start/crank
  • Sensor failure
  • Low fuel level

Silencer

  • Hospital-grade silencer inside canopy
  • Designed to meet low noise standards
  • Rain cap for outdoor protection
  • Tuned for emission after-treatment system (EATS)
